Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS ABS
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Helmet huosing - Undersaddle
Crankcase
1
2
3
4
4
5
6
7
8
9
9
10
11
12
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Crank-case
8409515001
Not Available
1
Crank-case
8409515002
Not Available
2
Circlip 25x26.9x1.2
000674
Not Available
3
Pin 6,5x9,5x15
239388
Not Available
4
Plug M12x1,5
411311
$0,67 Unit Price incl. VAT
5
Locating dowel Ø11x10
478115
$0,24 Unit Price incl. VAT
6
PERNO AGG. MOLLE CAVALLETTO
483785
$5,45 Unit Price incl. VAT
7
UGELLO CALIBRATO
484034
$6,44 Unit Price incl. VAT
8
Radial ball bearing 15x42x13
485912
Not Available
9
SILENTBLOC ATT.MOTORE
486081
$6,73 Unit Price incl. VAT
10
Gasket ring
82539R
Not Available
10
ANELLO DI TENUTA 20-32-7
82878R
$10,25 Unit Price incl. VAT
11
Radial ball bearing 20x47x14
833701
Not Available
12
Stud bolt
840332
Not Available
13
Pin 6,5x9,5x15
239388
Not Available
14
SCODELLINO
840489
$0,33 Unit Price incl. VAT
15
UGELLO CALIBRATO PER CARTER D.1,1
844582
$0,05 Unit Price incl. VAT
16
VITE A TESTA ESAGONALE FLANGIATA
830061
$0,34 Unit Price incl. VAT
17
Screw M5x10
018575
$2,95 Unit Price incl. VAT
18
PARATIA OLIO
483767
$0,38 Unit Price incl. VAT
19
PARATIA OLIO SUPERIORE
485047
$0,48 Unit Price incl. VAT
20
MOLLA VALVOLA PRESS.OLIO
485655
$1,26 Unit Price incl. VAT
21
VALVOLA REGOL.PRESSIONE OLIO
829661
$6,44 Unit Price incl. VAT
22
ASTA LIVELLO OLIO COMPL.
832130
$2,94 Unit Price incl. VAT
23
ANELLO DI TENUTA (O-RING)
827085
$2,99 Unit Price incl. VAT
24
INSERTO PORTA FILTRO COMPL.
845861
$3,82 Unit Price incl. VAT
25
GUARNIZIONE SEZ.CIRCOLARE
431065
$0,42 Unit Price incl. VAT
26
GRANO DI RIFERIMENTO (Ø7,5, H=12)
277916
$0,34 Unit Price incl. VAT
27
screw M6x60
432142
$0,19 Unit Price incl. VAT
28
Half crankcase gasket
845212
Not Available
28
GUARNIZIONE SEMICARTER
875111
$3,34 Unit Price incl. VAT

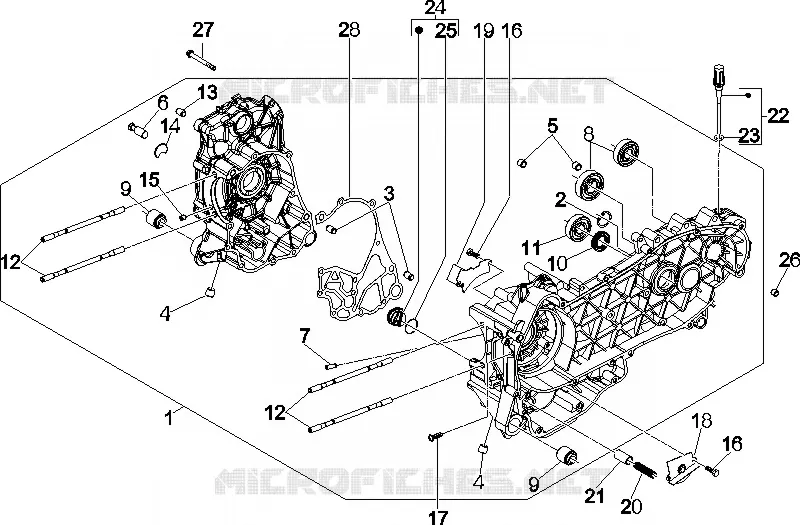

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
