Parts Catalog
Rear headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Central cover - Footrests
by
Cylinder-piston-wrist pin unit
Rear headlamps - Turn signal lamps
1
2
2
3
4
5
6
7
9
10
11
13
14
14
15
15
16
16
1
Rear light assembly
639682
$31,93 Unit Price incl. VAT
1
TAIL LAMP
638919
Not Available
2
Lamp 12V-5W
292022
Not Available
3
LAMPADA 12V-16W
638536
$2,22 Unit Price incl. VAT
4
RONDELLA ELASTICA ONDULATA 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
5
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
6
INDICATORE DIR.POST.DX.COMPL
584972
$59,40 Unit Price incl. VAT
7
LAMPADA A BULBO 12V-10
181746
$3,28 Unit Price incl. VAT
8
BULB SOCKET
583527
Not Available
9
RH gasket
584679
$4,82 Unit Price incl. VAT
10
INDICATORE DIR.POST.SX.COMPL
584973
$59,40 Unit Price incl. VAT
11
LAMPADA A BULBO 12V-10
181746
$3,28 Unit Price incl. VAT
12
BULB SOCKET
583527
Not Available
13
LH gasket
584678
$4,82 Unit Price incl. VAT
14
PIASTRINA ELASTICA
CM017406
$3,65 Unit Price incl. VAT
15
VITE AUTOFILETTANTE
008457
$2,99 Unit Price incl. VAT
16
Cap
250522
$4,82 Unit Price incl. VAT

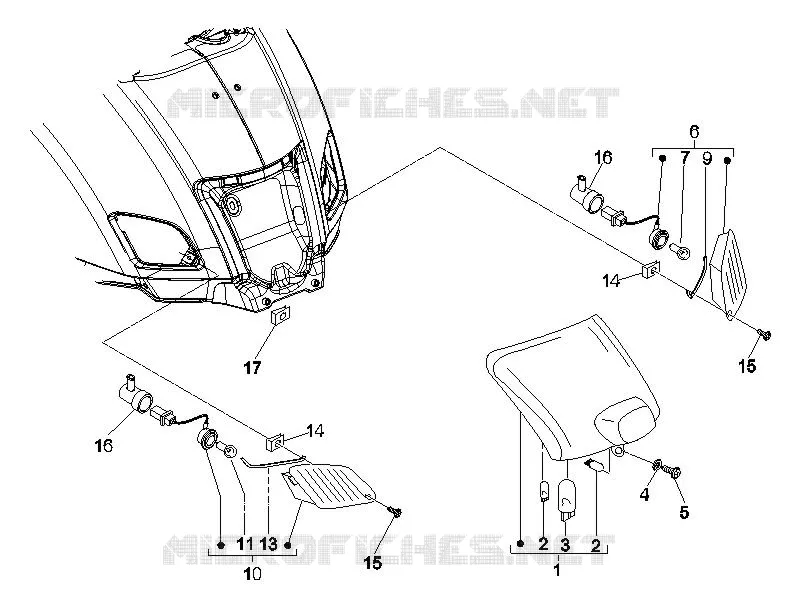

Find the detailed Rear headlamps - Turn signal lamps GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
