1
Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS ABS
5
Parts Catalog
Reduction unit
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers
by
Meter combination - Cruscotto
Reduction unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Side cover
842143
Not Available
2
Radial ball bearing 15x42x13
485912
Not Available
3
Radial bearing 30x55x13
82659R
Not Available
4
Oil seal 38x50x7
829201
Not Available
4
Oil seal 38x50x7
873351
$4,80 Unit Price incl. VAT
5
ANELLO ELASTICO
829206
$0,67 Unit Price incl. VAT
6
Screw w/ flange M8x45
487211
$0,29 Unit Price incl. VAT
7
screw M8x40
825758
$0,33 Unit Price incl. VAT
8
Hose clamp
827277
$3,65 Unit Price incl. VAT
9
GUARNIZIONE MOZZO RIDUTTORE
847931
$6,48 Unit Price incl. VAT
10
Pulley shaft
830071
Not Available
11
Transmission shaft Z=21/50
8410015
Not Available
12
Rear wheel axis cpl.
8410035
Not Available
13
VITE TCEI (M8x12)
269755
$0,34 Unit Price incl. VAT
14
RONDELLA IN LEGA k3
485703
$0,16 Unit Price incl. VAT
15
SFIATO RIDUTTORE
830862
$4,02 Unit Price incl. VAT
15
Breather pipe
844669
$4,89 Unit Price incl. VAT

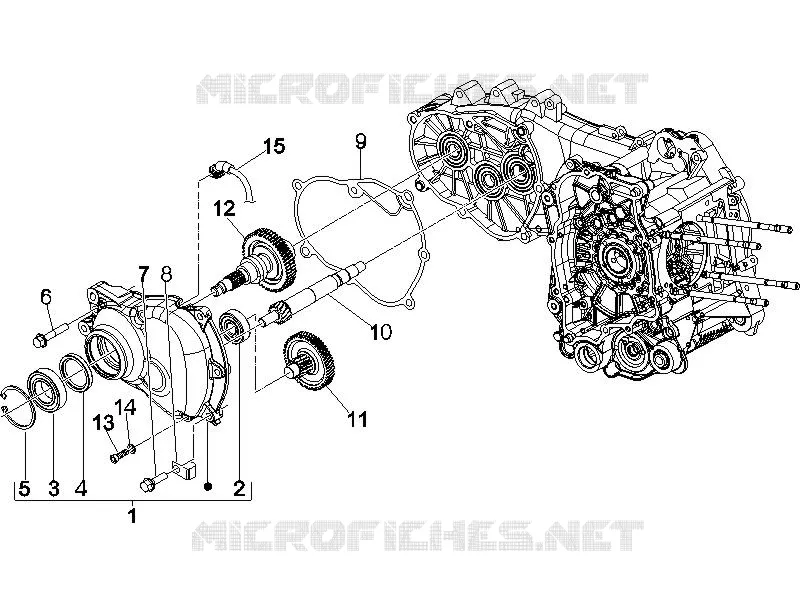

Find the detailed Reduction unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
