1
Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS ABS
5
Parts Catalog
Head unit - Valve
6
Parts Diagram
Parts Catalog
Driven pulley
by
Fork/steering tube - Steering bearing unit
Head unit - Valve
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
17
18
19
19
20
21
2
Hex socket screw M5x20
845753
Not Available
3
Thermostat
82831R
Not Available
4
Thermostat cover
845604
Not Available
5
CAPPUCCIO SPURGO
063435
$0,34 Unit Price incl. VAT
6
ANELLO O.R.
297027
$1,10 Unit Price incl. VAT
7
VITE DI SPURGO
845605
$3,21 Unit Price incl. VAT
8
Temperature gauge
639000
Not Available
9
DADO M8X1.25 (CH.12)
411296
$0,50 Unit Price incl. VAT
10
GUARNIZIONE TESTA/CILINDRO
831174
$5,82 Unit Price incl. VAT
11
screw
844160
Not Available
12
Cylinder head assembly
847568
Not Available
13
SEMICONI
285846
$2,94 Unit Price incl. VAT
14
ANELLO DI TENUTA VALVOLA K8
436438
$1,34 Unit Price incl. VAT
15
SCODELLINO INFERIORE
483711
$1,35 Unit Price incl. VAT
16
SCODELLINO SUPERIORE
483914
$0,91 Unit Price incl. VAT
17
Intake valve
484733
$16,91 Unit Price incl. VAT
17
Intake valve
843362
$16,91 Unit Price incl. VAT
18
Exhaust valve
829785
Not Available
18
Exhaust valve
843363
$36,89 Unit Price incl. VAT
19
MOLLA VALVOLA
828480
$2,25 Unit Price incl. VAT
20
PRIGIONIERO SPECIALE
435629
$0,67 Unit Price incl. VAT
21
GUARNIZIONE SCARICO K8
480853
$4,89 Unit Price incl. VAT

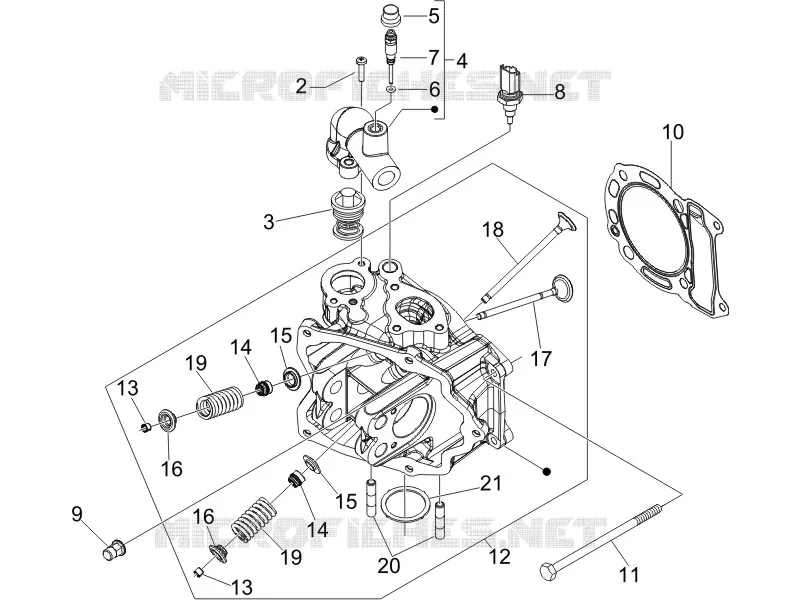

Find the detailed Head unit - Valve GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
