1
Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS ABS
5
Parts Catalog
Central cover - Footrests
6
Parts Diagram
Parts Catalog
Front headlamps - Turn signal lamps
by
Rear headlamps - Turn signal lamps
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Footrest
62392800F2
Not Available
1
Footrest
62392800EI
Not Available
1
Footrest
6239280090
Not Available
1
Footrest
62392800GP
Not Available
1
Footrest
623928
Not Available
1
Footrest
62392800R7
Not Available
1
Footrest
62392800ND
Not Available
1
Footrest
62392800RI
Not Available
1
Footrest
62392800DE
Not Available
2
BORDO SCUDO/PEDANA SIN.
577180
$56,70 Unit Price incl. VAT
3
BORDO SCUDO PARTE DX.
577181
$56,70 Unit Price incl. VAT
4
TASSELLO
199190
$2,95 Unit Price incl. VAT
5
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
6
VITE
258249
$0,09 Unit Price incl. VAT
7
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
8
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
9
Kit strips, footboard
577437
Not Available
10
VASCHETTA PORTABATTERIA
577406
$6,30 Unit Price incl. VAT
11
PORTELLO BATTERIA COMPL.
577182
$45,50 Unit Price incl. VAT
12
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
13
Self-tap screw
576189
$0,05 Unit Price incl. VAT

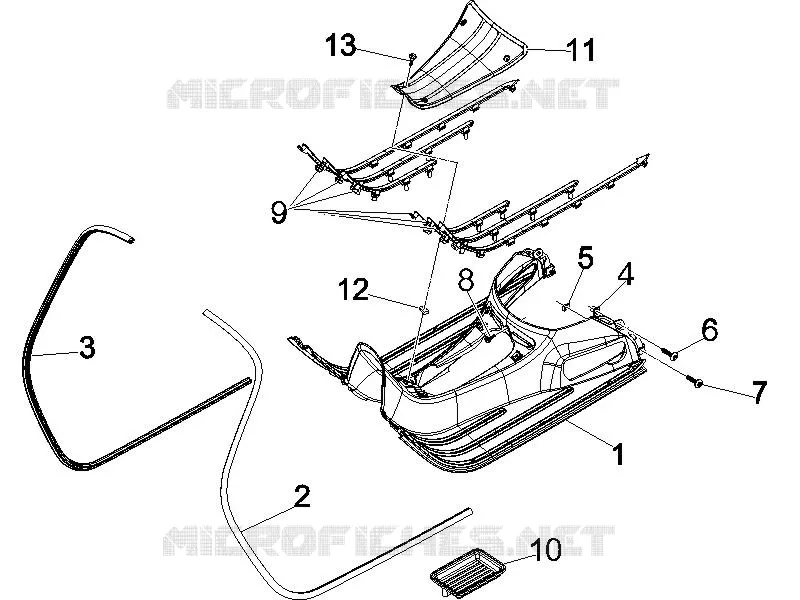

Find the detailed Central cover - Footrests GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
