1
Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS ABS
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Head unit - Valve
by
Crankcase cover - Crankcase cooling
Fork/steering tube - Steering bearing unit
1
2
7
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
43
44
45
46
47
48
49
51
52
53
54
55
56
57
58
60
61
62
63
64
65
66
68
69
70
71
73
74
75
76
1
Steering tube ring nut
011109
Not Available
2
Upper thrust ring
56297R
Not Available
7
Lower steering bearing
56298R
Not Available
10
RONDELLA FR.SUP.STERZO.
582787
$3,65 Unit Price incl. VAT
11
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
12
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
13
VITE METRICA INTAGLIO A CROCE
259348
$2,99 Unit Price incl. VAT
14
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
15
DADO SERRAGGIO
969224
$0,42 Unit Price incl. VAT
16
COPIGLIA
012789
$0,16 Unit Price incl. VAT
17
DADO ESAGONALE NORMALE
021114
$0,51 Unit Price incl. VAT
18
CAPPELLOTTO
177609
$2,19 Unit Price incl. VAT
19
ROSETTA ELASTICA CON DENTATURA
012535
$0,08 Unit Price incl. VAT
20
DADO ESAGONALE BASSO
021210
$0,16 Unit Price incl. VAT
21
VITE T.C.ESAG.INC.M8x40 UNI 5931-84 8.8
149104
$0,51 Unit Price incl. VAT
22
TAMPONE PER ATTACCO AMMORTIZZATORE
174085
$1,18 Unit Price incl. VAT
23
RONDELLA
174088
$0,84 Unit Price incl. VAT
24
TAMPONE PER ATTACCO AMMORTIZZATORE
174874
$2,36 Unit Price incl. VAT
25
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
26
ANELLO ELASTICO PER ALBERO
006422
$0,16 Unit Price incl. VAT
27
RONDELLA ONDULATA (5,3X10X0,5)
006975
$0,17 Unit Price incl. VAT
28
VITE T.E. M5X16
031058
$2,95 Unit Price incl. VAT
29
ANELLO O.R.
177408
$0,08 Unit Price incl. VAT
30
RONDELLA
177414
$0,75 Unit Price incl. VAT
31
RONDELLA
177445
$0,34 Unit Price incl. VAT
32
ANELLO DI TENUTA
177521
$0,66 Unit Price incl. VAT
33
TAMPONE TENUTA GUAIN
266841
$5,53 Unit Price incl. VAT
34
ROCCHETTO PRESA MOVIMENTO CONTAKM
267819
$7,69 Unit Price incl. VAT
35
Plate
269118
$4,82 Unit Price incl. VAT
36
MENSOLA ATT.AMMORT.P.I
273693
$7,23 Unit Price incl. VAT
37
Maintenance
564053
Not Available
38
SUPP.AMMORTIZZATORE E PINZA COMPL.
597758
$59,64 Unit Price incl. VAT
39
Drawn cap
177436
$9,18 Unit Price incl. VAT
40
ANELLO DI TENUTA
177494
$1,85 Unit Price incl. VAT
41
ANELLO ELASTICO
006635
$0,25 Unit Price incl. VAT
43
ASTUCCIO A RULLINI
177442
$4,04 Unit Price incl. VAT
44
ANELLO DI TENUTA
177443
$1,77 Unit Price incl. VAT
45
CUSCINETTO
177610
$8,41 Unit Price incl. VAT
46
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
47
Brake disc
564573
Not Available
48
Wheel hub
601122
Not Available
49
GRUPPO RUOTA FONICA
600924
Not Available
51
Arm complete steering tube
1U0000765
Not Available
52
GUARNIZIONE
006731
$0,34 Unit Price incl. VAT
53
ANELLO DI TENUTA
119219
$0,67 Unit Price incl. VAT
54
SPINOTTO
177451
$3,03 Unit Price incl. VAT
55
BOCCOLA A RULLINI
198513
$5,97 Unit Price incl. VAT
56
Suspension arm
56140R5
Not Available
57
SHOCK ABSORBER
56263R
Not Available
57
Complete front shock absorber
56286R
$85,05 Unit Price incl. VAT
58
Cover
092517
Not Available
60
MOLLETTA ELASTICA
231590
$0,25 Unit Price incl. VAT
61
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
62
Front suspension arm cover
561433
Not Available
63
Front suspension cover
59861500ND
Not Available
63
Front suspension cover
598615
Not Available
63
COPERTURA SOSPENSIONE ANT.
59861500DE
$54,27 Unit Price incl. VAT
63
Front suspension arm cover
598615000C
Not Available
64
Support bracket sensor
601655
Not Available
65
RONDELLA PIANA 12x5,2x1
006078
$0,08 Unit Price incl. VAT
66
RONDELLE
016343
$2,62 Unit Price incl. VAT
68
RONDELLA ELASTICA
016408
$0,08 Unit Price incl. VAT
69
DADO ESAGONALE M8 6H H=6,5
020108
$0,08 Unit Price incl. VAT
70
VITE TE M8X22 CL8.8 k6
031119
$3,65 Unit Price incl. VAT
71
FASCETTA
598134
$3,65 Unit Price incl. VAT
73
RONDELLA PIANA 5,3x10x0,8
003055
$0,08 Unit Price incl. VAT
74
VITE TBCEI M5x16 CL.10.9 (Nera)
842041
$0,08 Unit Price incl. VAT
75
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT
76
Encoder sensor
6006655
Not Available

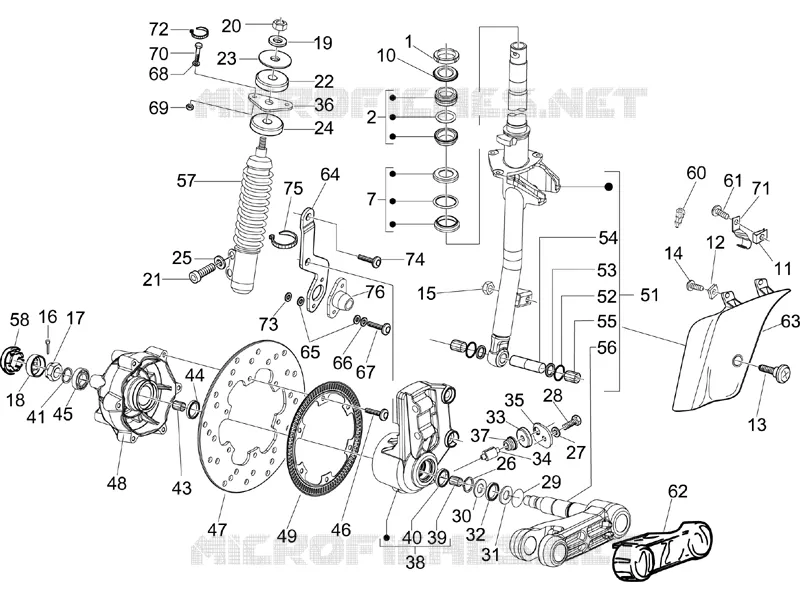

Find the detailed Fork/steering tube - Steering bearing unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
