1
Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS ABS
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Air filter
Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Oil pump assembly
844352
Not Available
2
CORONA POMPA OLIO
287913
$6,47 Unit Price incl. VAT
3
MOLLA A TAZZA
436695
$0,59 Unit Price incl. VAT
4
Screw w/ flange M6x14
833722
Not Available
5
CATENA POMPA OLIO (50 PS)
82649R
$13,37 Unit Price incl. VAT
6
PIGNONE COM.POMPA OLIO
82783R
$7,99 Unit Price incl. VAT
7
Carter-oil pump gasket
486082
$0,29 Unit Price incl. VAT
7
GUARNIZIONE CARTER/POMPA OLIO
847929
$0,34 Unit Price incl. VAT
8
VITE A TESTA ESAGONALE FLANGIATA
829593
$0,50 Unit Price incl. VAT
9
GRANO DI RIFERIMENTO (Ø7,5, H=12)
277916
$0,34 Unit Price incl. VAT
10
Oil filler plug
846819
Not Available
11
O-ring
479986
Not Available
12
GUARNIZIONE OR 31,47x1,78
285536
$0,92 Unit Price incl. VAT
13
Oil filter plug
82823R
Not Available
13
TAPPO FILTRO OLIO
826165
$5,88 Unit Price incl. VAT
14
COMPLESSIVO TENDICATENA
82650R
$34,52 Unit Price incl. VAT
15
Screw w/ flange M6x25
414837
Not Available
16
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
17
Chain tensioner rod spacer
485868
$0,29 Unit Price incl. VAT
18
GUARNIZIONE CIL./SUPP.TENDICATENA
847928
$0,42 Unit Price incl. VAT
19
ASTA TENDICATENA
840344
$4,20 Unit Price incl. VAT
20
RONDELLA PARAOLIO
483918
$0,53 Unit Price incl. VAT
21
ANELLO DI TENUTA (O-RING)
825952
$0,15 Unit Price incl. VAT
22
CATENA DISTRIBUZIONE SILENZIATORE
82723R
$24,71 Unit Price incl. VAT
23
PIGNONE DISTRIBUZIONE
82782R
$7,06 Unit Price incl. VAT
24
COPERCHIO DISTRIBUZIONE
847116
$22,74 Unit Price incl. VAT
25
PATTINO FISSO
847516
$4,25 Unit Price incl. VAT
26
COPPA DELL'OLIO MOTORE
846096
$11,92 Unit Price incl. VAT
27
Screw w/ flange M6x30
289731
Not Available
28
FASCETTA
564629
$2,50 Unit Price incl. VAT
29
GUARNIZIONE CARTER/COPPA OLIO
846098
$3,28 Unit Price incl. VAT

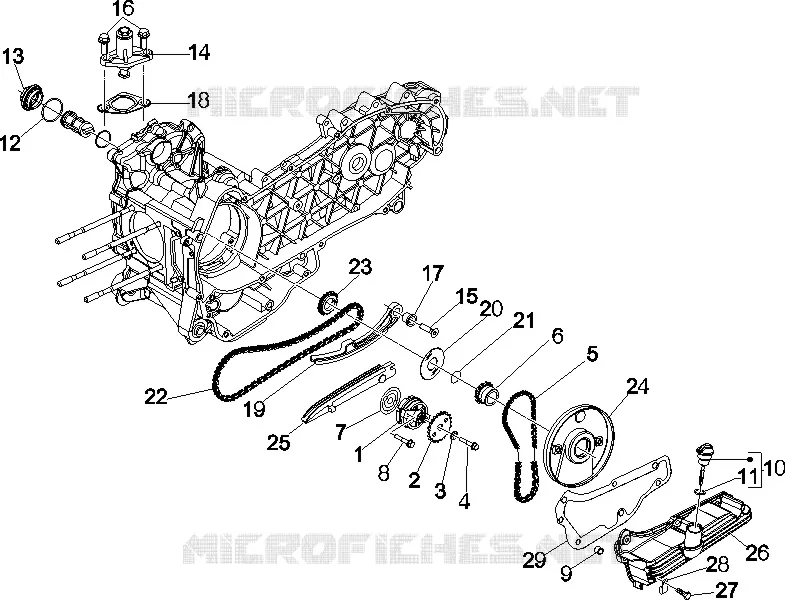

Find the detailed Oil pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
