1
Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS ABS
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Front wheel
by
Fuel tank
Handlebars - Master cil.
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
1
handlebars
623536
Not Available
2
Throttle control sleeve assembly
CM060965
Not Available
3
VITE-BUSSOLA BLOCCAGGIO MANOPOLA
123394
$3,70 Unit Price incl. VAT
4
MANOPOLA SINISTRA
271452
$13,37 Unit Price incl. VAT
5
MANOPOLA DESTRA
271453
$13,37 Unit Price incl. VAT
6
RONDELLA
562923
$2,99 Unit Price incl. VAT
7
Gas lever transmission
601288
Not Available
8
screw M6x55
271434
Not Available
9
Anti vib.weight trailing
582034
$14,89 Unit Price incl. VAT
10
RONDELLA ELASTICA PIANA DENT.INTERNA
012543
$0,08 Unit Price incl. VAT
11
ECROU
015330
$0,25 Unit Price incl. VAT
12
RONDELLA PIANA
178790
$0,51 Unit Price incl. VAT
13
VITE A TESTA CILINDRICA ESAGONO INCASS.
655554
$3,70 Unit Price incl. VAT
13
screw
223605
Not Available
14
COLLARINO DI PROTEZION
582828
$4,82 Unit Price incl. VAT
15
Master cil. (black lever)
CM063701
Not Available
16
LEVA FRENO COL.ALLUMINIO
646803
$90,45 Unit Price incl. VAT
17
Front master cilinder
CM063607
Not Available
18
LEVA FRENO COL.ALLUMINIO
646803
$90,45 Unit Price incl. VAT

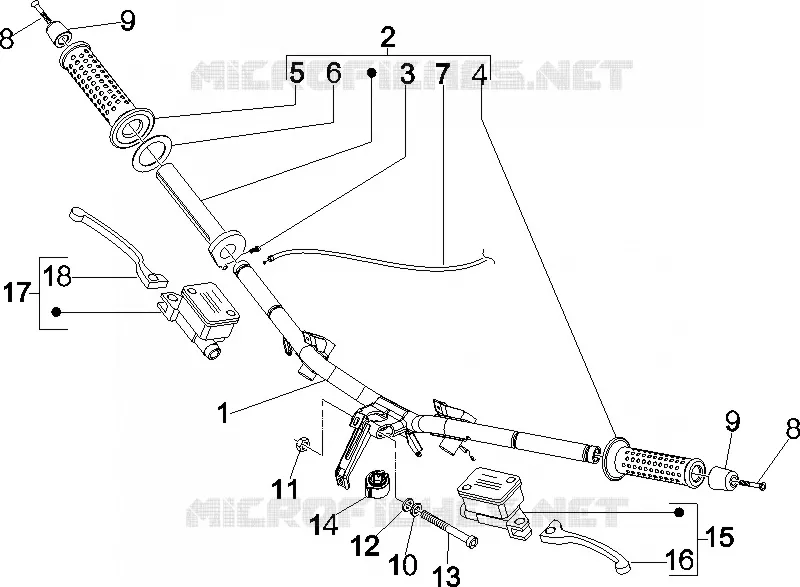

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
