1
Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS ABS
5
Parts Catalog
Silencer
6
Parts Diagram
Parts Catalog
Swinging arm
by
Engine, assembly

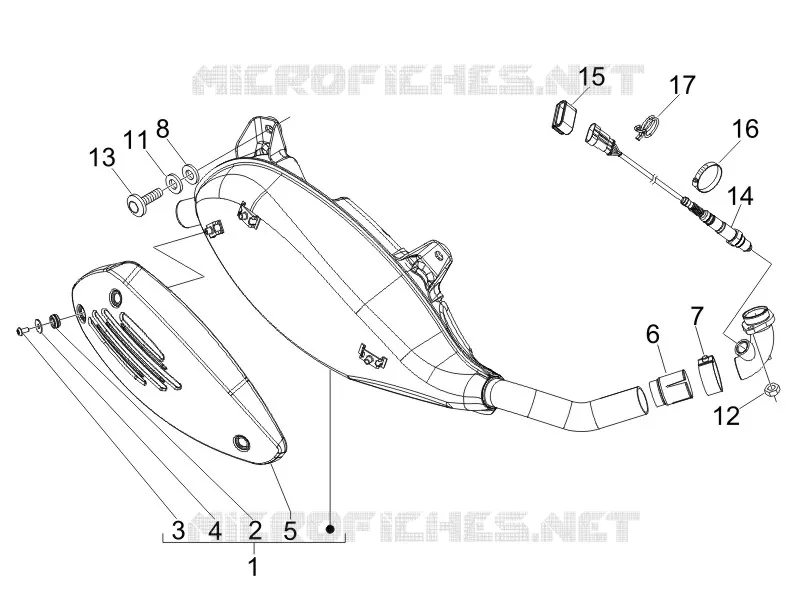

Silencer
1
2
3
4
5
6
7
8
11
12
13
14
15
16
17
1
Silencer complete with protection
8463425
Not Available
2
PASSACAVO
841782
$0,84 Unit Price incl. VAT
3
screw M5x10
842908
Not Available
4
RONDELLA PIANA
844927
$0,50 Unit Price incl. VAT
5
PROTEZIONE PARACALORE
844864
$40,69 Unit Price incl. VAT
6
Graphite bushing
826388
Not Available
7
Hose clamp
845320
Not Available
8
ROSETTA ELASTICA TIPO "CONTACT"
834187
$0,16 Unit Price incl. VAT
11
RONDELLA PIANA
848452
$0,84 Unit Price incl. VAT
12
DADO ESAGONALE FLANGIATO M7x1 H=8
436947
$0,42 Unit Price incl. VAT
13
VITE TESTA BOMBATA CHIAVE TORX
599208
$0,62 Unit Price incl. VAT
14
SONDA LAMBDA
584344
$93,68 Unit Price incl. VAT
15
SUPPORTO PER CONNETTORE
847974
$4,98 Unit Price incl. VAT
16
FASCETTA
825481
$3,38 Unit Price incl. VAT
17
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT

Find the detailed Silencer GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
