1
Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS ABS
5
Parts Catalog
Cooler pump
6
Parts Diagram
Parts Catalog
Crankshaft
by
Rear luggage rack
Cooler pump
1
2
3
4
5
8
9
10
11
12
13
15
15
16
17
18
19
1
GIRANTE POMPA ACQUA
844730
$3,01 Unit Price incl. VAT
2
GIUNTO TRASCINAMENTO POMPA ACQUA
842389
$5,64 Unit Price incl. VAT
3
Gasket
842455
Not Available
4
Gasket ring
842595
Not Available
5
ALBERO POMPA ACQUA COMPLETO
8447595
$54,95 Unit Price incl. VAT
8
By-pass pipe
847718
Not Available
9
Water pump cover
846734
Not Available
10
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT
11
VITE TCCIC M5X22 (5.8)
828662
$0,25 Unit Price incl. VAT
12
O.R. COPERCHIO POMPA
485080
$0,72 Unit Price incl. VAT
13
Pump-cylinder hose
841130
Not Available
15
FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)
CM001908
$3,65 Unit Price incl. VAT
16
MOLLA TRASCINAMENTO GIUNTO
842390
$0,48 Unit Price incl. VAT
17
FLYWHEEL COVER ASSY
8458245
Not Available
18
O-ring
479986
Not Available
19
Timing plug assembly
829040
Not Available

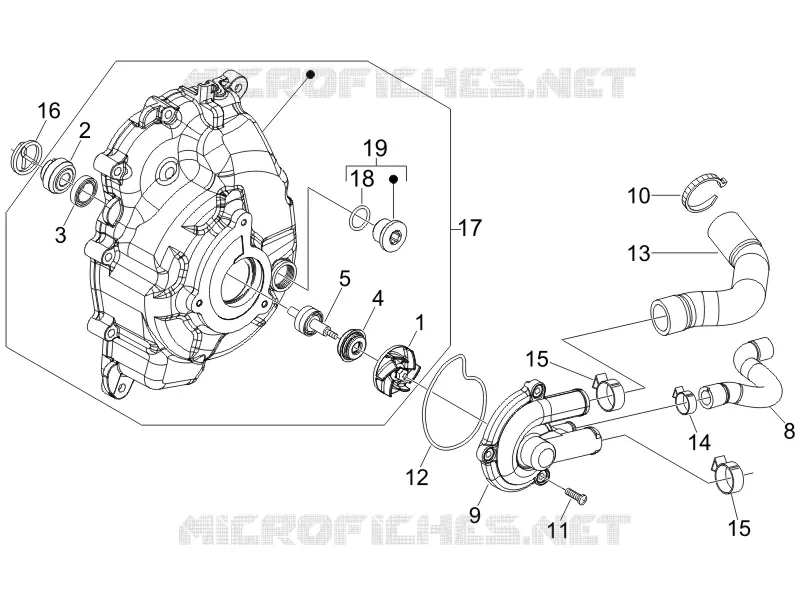

Find the detailed Cooler pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for GTS ABS

Side cover - Spoiler

Side cover - Spoiler

for GTS ABS from 2005

Saddle/seats

Saddle/seats

for GTS ABS from 2005

Driven pulley

Driven pulley

for GTS ABS from 2005

Head unit - Valve

Head unit - Valve

for GTS ABS from 2005

Fork/steering tube - Steering bearing unit

Fork/steering tube - Steering bearing unit

for GTS ABS from 2005

Crankcase cover - Crankcase cooling

Crankcase cover - Crankcase cooling

for GTS ABS from 2005

Stand/s

Stand/s

for GTS ABS from 2005

Crankshaft

Crankshaft

for GTS ABS from 2005

Cooler pump

Cooler pump

for GTS ABS from 2005

Rear luggage rack

Rear luggage rack

for GTS ABS from 2005

Front headlamps - Turn signal lamps

Front headlamps - Turn signal lamps

for GTS ABS from 2005

Central cover - Footrests

Central cover - Footrests

for GTS ABS from 2005

Rear headlamps - Turn signal lamps

Rear headlamps - Turn signal lamps

for GTS ABS from 2005

Cylinder-piston-wrist pin unit

Cylinder-piston-wrist pin unit

for GTS ABS from 2005

Flywheel magneto cover - Oil filter

Flywheel magneto cover - Oil filter

for GTS ABS from 2005

Frame/bodywork

Frame/bodywork

for GTS ABS from 2005

Stater - Electric starter

Stater - Electric starter

for GTS ABS from 2005

Swinging arm

Swinging arm

for GTS ABS from 2005

Silencer

Silencer

for GTS ABS from 2005

Engine, assembly

Engine, assembly

for GTS ABS from 2005

Plates - Emblems

Plates - Emblems

for GTS ABS from 2005

Rear suspension - Shock absorber/s

Rear suspension - Shock absorber/s

for GTS ABS from 2005

Crankcase

Crankcase

for GTS ABS from 2005

Helmet huosing - Undersaddle

Helmet huosing - Undersaddle

for GTS ABS from 2005

Flywheel magneto

Flywheel magneto

for GTS ABS from 2005

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

for GTS ABS from 2005

Throttle body - Injector - Union pipe

Throttle body - Injector - Union pipe

for GTS ABS from 2005

Front glove-box - Knee-guard panel

Front glove-box - Knee-guard panel

for GTS ABS from 2005

Wheel huosing - Mudguard

Wheel huosing - Mudguard

for GTS ABS from 2005

Oil pump

Oil pump

for GTS ABS from 2005

Air filter

Air filter

for GTS ABS from 2005

Front wheel

Front wheel

for GTS ABS from 2005

Handlebars - Master cil.

Handlebars - Master cil.

for GTS ABS from 2005

Fuel tank

Fuel tank

for GTS ABS from 2005

Selectors - Switches - Buttons

Selectors - Switches - Buttons

for GTS ABS from 2005

Remote control switches - Battery - Horn

Remote control switches - Battery - Horn

for GTS ABS from 2005

Front shield

Front shield

for GTS ABS from 2005

Rocking levers support unit

Rocking levers support unit

for GTS ABS from 2005

Handlebars coverages

Handlebars coverages

for GTS ABS from 2005

Cylinder head cover

Cylinder head cover

for GTS ABS from 2005

Brakes pipes - Calipers

Brakes pipes - Calipers

for GTS ABS from 2005

Reduction unit

Reduction unit

for GTS ABS from 2005

Meter combination - Cruscotto

Meter combination - Cruscotto

for GTS ABS from 2005

Main cable harness

Main cable harness

for GTS ABS from 2005

Rear wheel

Rear wheel

for GTS ABS from 2005

Cooling system

Cooling system

for GTS ABS from 2005

Rear cover - Splash guard

Rear cover - Splash guard

for GTS ABS from 2005

Supply system

Supply system

for GTS ABS from 2005

Locks

Locks

for GTS ABS from 2005

Driving pulley

Driving pulley

for GTS ABS from 2005

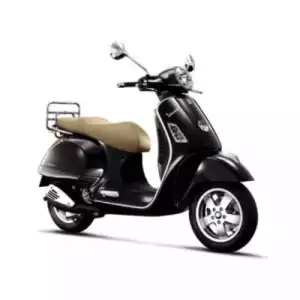

GILERA PIAGGIO VESPA GTS ABS 2005
