Parts Catalog
Front headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Rear luggage rack
by
Central cover - Footrests
Front headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
PROIETTORE COMPLETO
584479
Not Available
2
PORTALAMP. **
253327
$4,82 Unit Price incl. VAT
3
Lamp 12V-5W
292022
Not Available
4
LAMPADA 12V 55/60W ALO -> 437327
292723
$10,39 Unit Price incl. VAT
5
VITE
296458
$2,25 Unit Price incl. VAT
6
FANALINO LUCE POSIZIONE ANT
584726
$47,25 Unit Price incl. VAT
7
Lamp 12V-5W
292022
Not Available
8
INDICATORE DIR.ANT.DX.COMPL.
584970
$60,75 Unit Price incl. VAT
9
LAMPADA 12V-5W
581904
$6,35 Unit Price incl. VAT
10
GR.CAVETTI
583864
$15,37 Unit Price incl. VAT
11
INDICATORE DIR.ANT.SX.COMPL.
584971
$60,75 Unit Price incl. VAT
12
LAMPADA 12V-5W
581904
$6,35 Unit Price incl. VAT
13
GR.CAVETTI
583864
$15,37 Unit Price incl. VAT
14
PIASTRINA ELASTICA
CM017406
$3,65 Unit Price incl. VAT
15
VITE AUTOFILETTANTE
008457
$2,99 Unit Price incl. VAT
16
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT
17
FASCETTA
638792
$4,82 Unit Price incl. VAT
18
VITE AUTOMASCHIANTE
433800
$0,19 Unit Price incl. VAT
19
RONDELLA PIANA 12x5,2x1
006078
$0,08 Unit Price incl. VAT

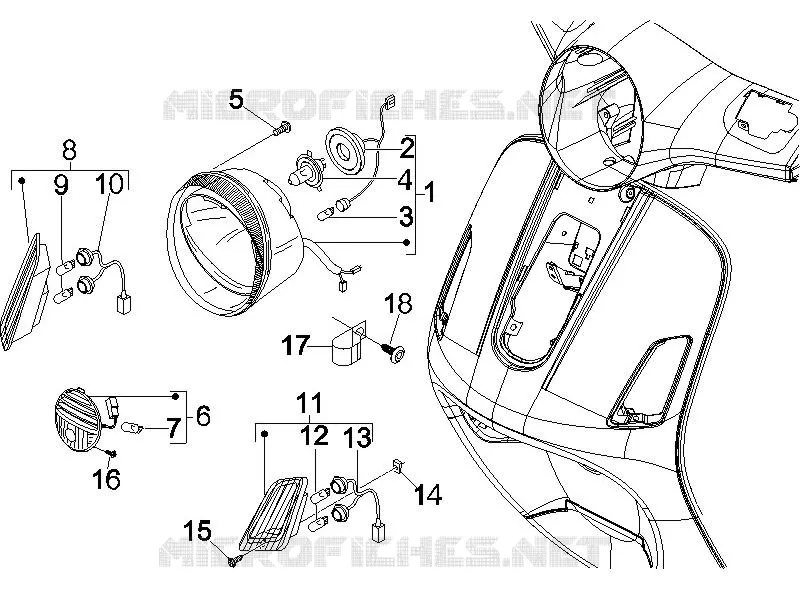

Find the detailed Front headlamps - Turn signal lamps GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
