1
Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS ABS
5
Parts Catalog

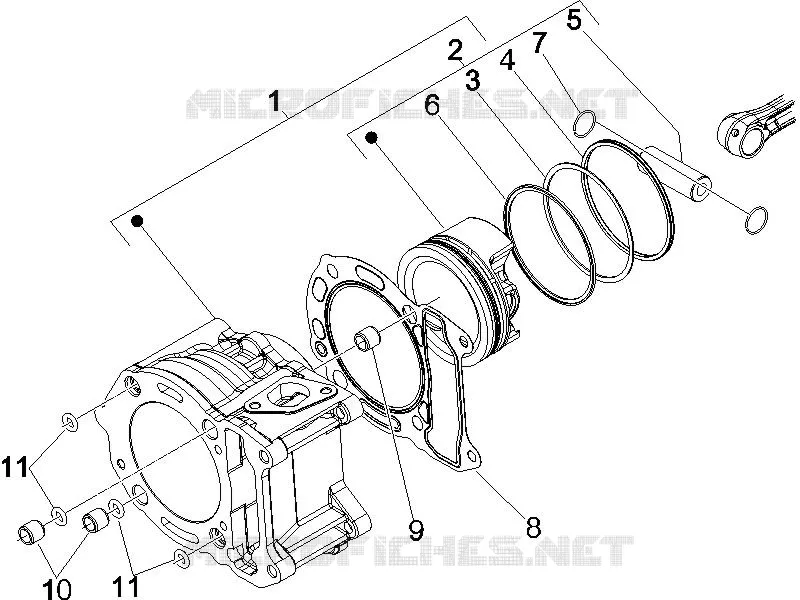

Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Rear headlamps - Turn signal lamps
by
Flywheel magneto cover - Oil filter
Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
10
11
11
1
GR.CILINDRO-PISTONE-SPIN-SEGM-ANELLI
843517
$232,14 Unit Price incl. VAT
2
GR.PISTONE SPINOTTO ST.
8435190004
$89,82 Unit Price incl. VAT
2
GR.PISTONE SPINOTTO ST.
8435190002
$89,82 Unit Price incl. VAT
2
GR.PISTONE SPINOTTO ST.
8435190001
$117,75 Unit Price incl. VAT
2
GR.PISTONE SPINOTTO ST.
8435190003
$90,56 Unit Price incl. VAT
3
SEGMENTO RASCH.72X1 KOENIG
484908
$24,09 Unit Price incl. VAT
4
SEGMENTO RASCH.72X2,5
486363
$25,62 Unit Price incl. VAT
5
PISTON PIN 180/200 4T
829529
$8,12 Unit Price incl. VAT
6
SEG.COMPR. D.72*1,5*2,
830486
$34,62 Unit Price incl. VAT
7
ANELLO RITEGNO SPINOTTO
963486
$0,05 Unit Price incl. VAT
8
GUARNIZIONE CILIND/CARTER 0,4
875112
$4,04 Unit Price incl. VAT
8
Cylinder base gasket 0,8 mm
828148
Not Available
8
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
8
Cylinder base gasket 0,4 mm
828146
Not Available
9
GRANO DI RIFERIMENTO (Ø7,5, H=12)
277916
$0,34 Unit Price incl. VAT
10
Locating dowel Ø11x10
478115
$0,24 Unit Price incl. VAT
11
O-ring
478184
Not Available

Find the detailed Cylinder-piston-wrist pin unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
