Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Cooling system
1
2
3
4
5
6
6
7
8
8
9
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
23
23
23
23
24
25
26
27
28
29
30
31
32
32
32
33
33
33
33
34
34
34
34
35
36
36
36
37
1
Réservoir
657111
Not Available
2
TAPPO SERB.LIQUIDO RAF
623673
$15,97 Unit Price incl. VAT
3
VITE METRICA(IMPRONTA TORX)
CM179201
$0,34 Unit Price incl. VAT
4
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
5
RACCORDO
577195
$8,16 Unit Price incl. VAT
6
VITE METRICA(IMPRONTA TORX)
CM179201
$0,34 Unit Price incl. VAT
7
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
8
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
9
RADIATORE ACQUA
577183
$50,73 Unit Price incl. VAT
10
VITE AUTOFILET. CON IMPRONTA TORX
CM178606
$0,16 Unit Price incl. VAT
11
DADO ES.FLG.M6 DIN-6923
288245
$0,16 Unit Price incl. VAT
12
TUBO COLL.RADIATORE
57313R
$26,74 Unit Price incl. VAT
13
TUBO COLL.RACCORDO SUP.
1B003727
$56,11 Unit Price incl. VAT
14
FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)
CM001908
$3,65 Unit Price incl. VAT
15
TUBO COLLEGAMENTO RACCORDO-TESTA
653501
$31,97 Unit Price incl. VAT
16
TUBO COLL.RADIATORE
577201
$26,74 Unit Price incl. VAT
17
TUBO COLL.RACC.INF.POMPA
656437
$20,60 Unit Price incl. VAT
18
TUBO COLL.RADIATORE-RACCORDO SX
1B003454
$8,91 Unit Price incl. VAT
19
TUBO COLL.RACCORDO-VASO ESPANSIONE
1B003456
$5,38 Unit Price incl. VAT
20
TUBO COLL.RACCORDO-VASO ESPANSIONE
57314R
$7,23 Unit Price incl. VAT
21
TUBO COLL.RADIATORE-RACCORDO DX
1B003455
$5,38 Unit Price incl. VAT
22
RACCORDO PER TUBI ACQUA
656449
$17,83 Unit Price incl. VAT
23
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT
24
Hose clamp
675874
$3,65 Unit Price incl. VAT
25
ELETTROVENTOLA
584669
$76,39 Unit Price incl. VAT
26
VITE METRICA IMP. TORX(H=16)
CM179301
$0,25 Unit Price incl. VAT
27
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
28
CONVOGLIATORE ARIA SX
577187
$15,22 Unit Price incl. VAT
29
CONVOGLIATORE ARIA DX
622839
$15,22 Unit Price incl. VAT
30
PROTEZIONE A = 65
CM077703
$4,32 Unit Price incl. VAT
31
Hose clamp
CM001902
Not Available
32
FASCETTA STRINGITUBO
CM001904
$0,75 Unit Price incl. VAT
33
FASCETTA STRINGITUBO
CM001905
$1,38 Unit Price incl. VAT
34
FASCETTA STRINGITUBO
CM001907
$0,84 Unit Price incl. VAT
35
FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)
CM001908
$3,65 Unit Price incl. VAT
36
FASCETTA STRINGITUBO (D.28,6 S.0,6 L.7)
CM001915
$1,03 Unit Price incl. VAT
37
MOLLETTA RITEGNO TUBI
CM006903
$1,43 Unit Price incl. VAT

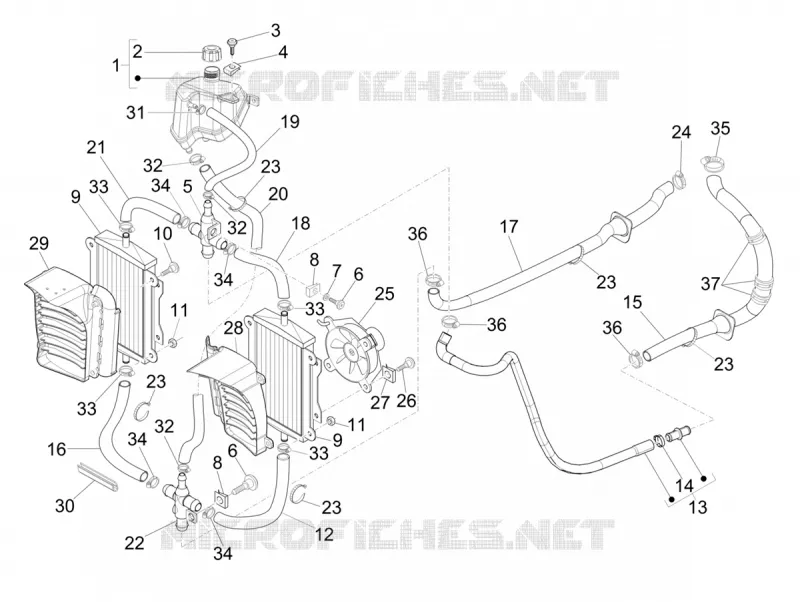

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
