1
Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Stater - Electric starter
Swinging arm
1
2
2
3
3
4
4
5
6
7
8
9
10
10
11
11
12
12
13
13
14
14
15
16
17
17
18
18
19
20
21
22
23
24
25
26
1
BRACCIO OSCILL.L.TELAIO COMPL.
5A000479
$50,04 Unit Price incl. VAT
2
BUSSOLA
598917
$0,67 Unit Price incl. VAT
3
ANELLO DI TENUTA
1C004356R
$1,38 Unit Price incl. VAT
4
ASTUCCIO A RULLINI
600161
$6,98 Unit Price incl. VAT
5
DISTANZIALE
597857
$15,31 Unit Price incl. VAT
6
VITE TESTA ESAGONALE(M12x1,75)
597914
$14,12 Unit Price incl. VAT
7
ROSETTA PIANA
266845
$0,50 Unit Price incl. VAT
8
DADO
271740
$0,67 Unit Price incl. VAT
9
BRACCIO OSCILLANTE LATO MOTORE COMPLETO
1C0025559
$230,09 Unit Price incl. VAT
10
BUSSOLA
597317
$0,92 Unit Price incl. VAT
11
ANELLO DI TENUTA
1C001341
$1,43 Unit Price incl. VAT
12
BOCCOLA A RULLINI C.TE
56127R
$5,55 Unit Price incl. VAT
13
DISTANZIALE
650755
$6,60 Unit Price incl. VAT
14
DISTANZIALE
CM067806
$29,76 Unit Price incl. VAT
15
VITE A TESTA ESAGONALE
271779
$2,11 Unit Price incl. VAT
16
DADO AUTOFRENANTE M10
002440
$0,34 Unit Price incl. VAT
17
STAFFA SUPORTO SILENTBLOC
601815
$67,48 Unit Price incl. VAT
17
STAFFA SUPORTO SILENTBLOC
1C002894
$230,55 Unit Price incl. VAT
18
BUSSOLA
273460
$0,75 Unit Price incl. VAT
19
SILENT BLOCK
272750
$12,52 Unit Price incl. VAT
20
SILENTBLOC
599250
$8,65 Unit Price incl. VAT
21
ANELLO ELASTICO
006416
$0,08 Unit Price incl. VAT
22
ROSETTA ELASTICA CON DENTATURA
012535
$0,08 Unit Price incl. VAT
23
VITE TE M10x20 CL8.8
031153
$3,65 Unit Price incl. VAT
24
DISTANZIALE
599077
$6,60 Unit Price incl. VAT
25
VITE TESTA ESAG. PARZIALM. FILETTATO
598237
$7,65 Unit Price incl. VAT
26
MOLLA
599059
$4,82 Unit Price incl. VAT

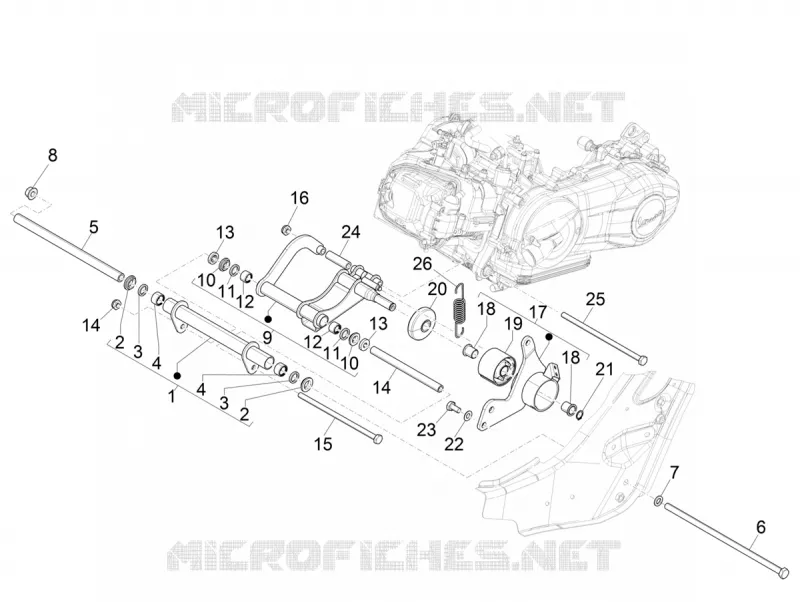

Find the detailed Swinging arm GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
