1
Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
ENGINE ASSEMPLY
by
Remote control switches - Battery - Horn
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
1
Guidon avec pièces internes
1B006828
Not Available
2
VITE A TESTA CILINDR.CON ESAGONO INCAS.
668874
$2,95 Unit Price incl. VAT
3
RONDELLA ELASTICA PIANA DENT.INTERNA
012543
$0,08 Unit Price incl. VAT
4
PLAIN WASHER
267917
$0,50 Unit Price incl. VAT
5
ECROU
015330
$0,25 Unit Price incl. VAT
6
MANICOTTO COMANDO GAS COMPLETO
CM087722
$162,00 Unit Price incl. VAT
7
MANOPOLA DESTRA
CM083802
$21,87 Unit Price incl. VAT
8
MANOPOLA SINISTRA
CM083801
$21,87 Unit Price incl. VAT
9
TERMINALE MANUBRIO
673243
$24,38 Unit Price incl. VAT
10
screw M6x55
271434
Not Available
11
MOLLETTA
657046
$3,65 Unit Price incl. VAT
12
POMPA FRENO SX (FRENO POST)
CM295603
$209,80 Unit Price incl. VAT
13
LEVA FRENO
497042
$18,36 Unit Price incl. VAT
14
POMPA IDRAULICA FRENO
CM295304
$115,28 Unit Price incl. VAT
15
LEVA FRENO
497042
$18,36 Unit Price incl. VAT
16
KIT SPURGO IMP. FRENANTE V. GTS '18 '19
1R000467
$25,50 Unit Price incl. VAT
17
GUARNIZIONE
006731
$0,34 Unit Price incl. VAT
18
ROSETTA 10.2X14X1,5
AP8113004
$0,34 Unit Price incl. VAT
19
BOCCHETTONE DI SPURGO COMPLETO
AP8133945
$13,78 Unit Price incl. VAT

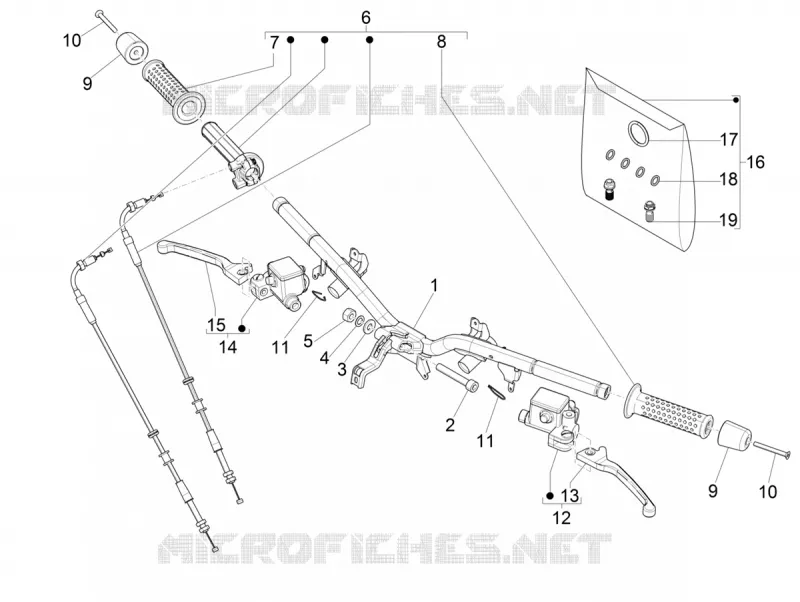

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
