1
Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog

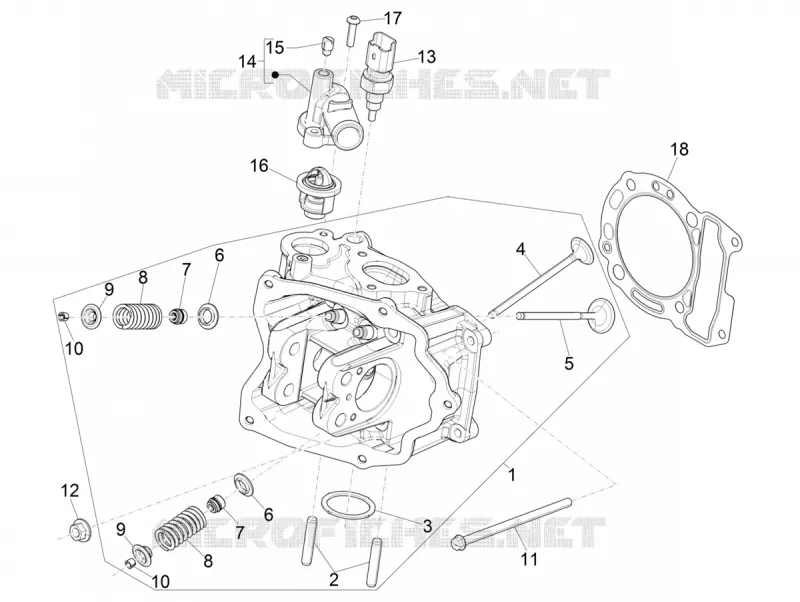

CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Throttle body - Injector - Inlet manifold
CYLINDER HEAD - VALVES
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
1
TESTA CILINDRO COMPLETA
1A0134325
$942,78 Unit Price incl. VAT
2
PRIGIONIERO SPECIALE
435629
$0,67 Unit Price incl. VAT
3
GUARNIZIONE SCARICO K8
480853
$4,89 Unit Price incl. VAT
4
VALVOLA DI SCARICO ø 22.2 mm
1A014447
$32,28 Unit Price incl. VAT
5
VALVOLA DI ASPIRAZIONE ø 25 mm
1A009730
$32,28 Unit Price incl. VAT
6
SCODELLINO INFERIORE
483711
$1,35 Unit Price incl. VAT
7
ANELLO DI TENUTA VALVOLA K8
436438
$1,34 Unit Price incl. VAT
8
MOLLA VALVOLA
1A009718
$7,02 Unit Price incl. VAT
9
SCODELLINO SUPERIORE
483914
$0,91 Unit Price incl. VAT
10
SEMICONI
285846
$2,94 Unit Price incl. VAT
11
VITE ESAGONALE FLANGIATA M6X112,5
B016807
$1,26 Unit Price incl. VAT
12
DADO FLANGIATO NORMALE M8x1.25
1A010537
$3,65 Unit Price incl. VAT
13
Temperature gauge
640485
Not Available
14
RACCORDO USCITA ACQUA COMPLETO
1A011220
$38,43 Unit Price incl. VAT
15
Vis de purge
1A011176
Not Available
16
TERMOSTATO ACQUA
82831R5
$32,18 Unit Price incl. VAT
17
VITE A TESTA BOMBATA TORX M5X20
B016808
$0,20 Unit Price incl. VAT
18
GUARNIZIONE TESTA-CILINDRO
1A014002
$22,96 Unit Price incl. VAT

Find the detailed CYLINDER HEAD - VALVES GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
