1
Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog
Stater - Electric starter
6
Parts Diagram
Parts Catalog
Swinging arm
by
Crankcase cover - Crankcase cooling
Stater - Electric starter
1
2
3
4
5
6
7
1
MOTORINO DI AVVIAMENTO
1A011611R
$56,57 Unit Price incl. VAT
2
VITE ESAGONALE FLANGIATA M6X25 CL10,9
B016774
$0,34 Unit Price incl. VAT
3
RINVIO AVVIAMENTO ELETTRICO
874803
$45,50 Unit Price incl. VAT
4
CORONA AVV.ELETTRICO CON P.I.
82737R
$81,00 Unit Price incl. VAT
5
CAVO MOTORINO AVVIAMENTO
1D001983
$52,26 Unit Price incl. VAT
6
RONDELLA ELASTICA (6,4X11,8X1)
016406
$0,34 Unit Price incl. VAT
7
DADO ESAGONALE M6 CL.6S
020106
$0,08 Unit Price incl. VAT

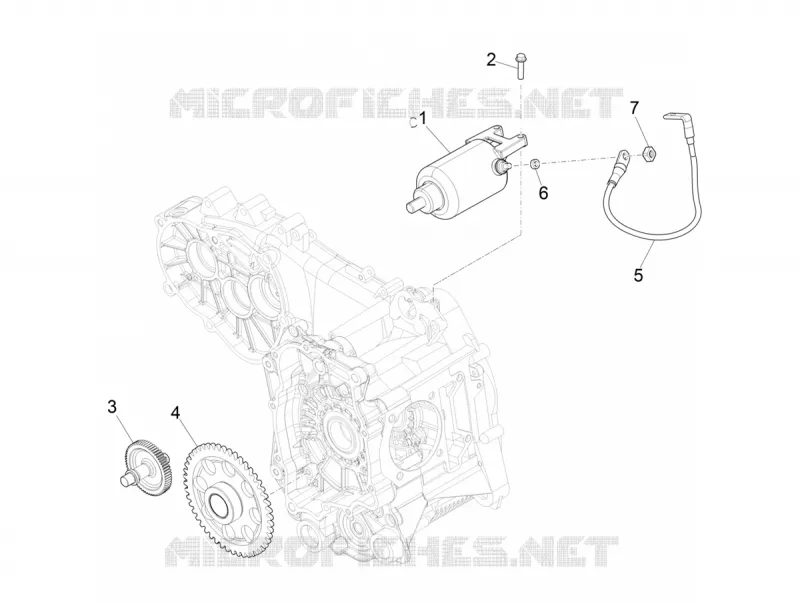

Find the detailed Stater - Electric starter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
