1
Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog
Throttle body - Injector - Inlet manifold
6
Parts Diagram
Parts Catalog
CYLINDER HEAD - VALVES
by
Saddle/seats
Throttle body - Injector - Inlet manifold
1
2
3
4
5
6
7
8
9
10
10
1
CORPO FARFALLATO CON ECU
CM316201
$340,90 Unit Price incl. VAT
2
RACCORDO DI AMMISSIONE CON P.I.
1A018515
$29,29 Unit Price incl. VAT
3
INIETTORE BENZINA
CM291201
$168,76 Unit Price incl. VAT
4
MOLLETTA RIT.INIETTORE X FASATURA
849898
$0,34 Unit Price incl. VAT
5
SUPPORTO INIETTORE CON TAPPO BENZINA
1A013640
$15,37 Unit Price incl. VAT
6
VITE A TESTA ESAGONALE FLANGIATA
830061
$0,34 Unit Price incl. VAT
7
VITE TE M6x20
018639
$0,16 Unit Price incl. VAT
8
GUARNIZIONE TESTA-RACC. AMMISSIONE
1A009942
$4,25 Unit Price incl. VAT
9
MANICOTTO RACCORDO DI AMMISSIONE
1A018283
$14,75 Unit Price incl. VAT
10
FASCETTA STRINGITUBO Ø40-60
614188
$2,61 Unit Price incl. VAT

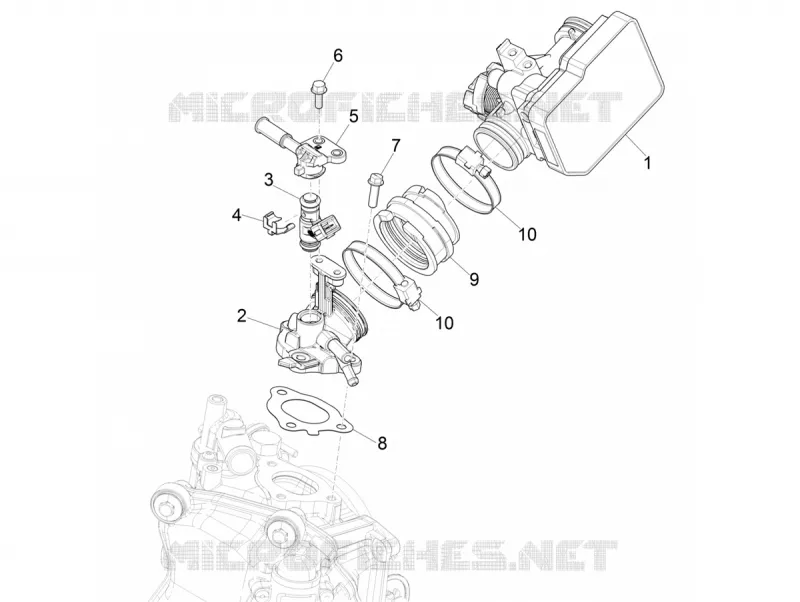

Find the detailed Throttle body - Injector - Inlet manifold GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
