1
Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog
FLYWHEEL COVER - OIL FILTER
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
CENTRAL COVER - FOOTRESTS
FLYWHEEL COVER - OIL FILTER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
COPERCHIO VOLANO COMPL.
1A0128565
$307,40 Unit Price incl. VAT
2
ALBERO POMPA ACQUA COMPLETO
8447595
$54,95 Unit Price incl. VAT
3
CUSCINETTO A SFERE
82755R
$14,18 Unit Price incl. VAT
4
ANELLO DI TENUTA POMPA ACQUA
82991R
$24,39 Unit Price incl. VAT
5
GIUNTO TRASCINAMENTO POMPA ACQUA
842389
$5,64 Unit Price incl. VAT
6
ANELLO DI TENUTA 20.30.5
82897R
$4,36 Unit Price incl. VAT
7
TAPPO FASATURA X RIC.
8290405
$10,28 Unit Price incl. VAT
8
GUARNIZIONE "O.R."
1A009397
$0,25 Unit Price incl. VAT
9
GIRANTE POMPA ACQUA
844730
$3,01 Unit Price incl. VAT
10
GUARNIZIONE COP.VOLANO
840504
$2,91 Unit Price incl. VAT
11
STAFFA SUPPORTO CAVI CON P.I.
1A0078285
$15,31 Unit Price incl. VAT
12
VITE (M6X35)
414838
$0,67 Unit Price incl. VAT
13
VITE ESAGONALE FLANGIATA M6X112,5
B016807
$1,26 Unit Price incl. VAT
14
Minimum oil pressure sensor
1D001138
Not Available
15
RONDELLA
1A011500
$0,59 Unit Price incl. VAT
16
FILTRO OLIO ASPIRAZIONE COMPL.
843568
$14,92 Unit Price incl. VAT
17
ANELLO OR 20,35X1,78
288474
$0,08 Unit Price incl. VAT
18
TAPPO FILTRO OLIO
826165
$5,88 Unit Price incl. VAT
19
GUARNIZIONE OR 31,47x1,78
285536
$0,92 Unit Price incl. VAT
20
Oil filter
82635R
$12,36 Unit Price incl. VAT
21
VITE SPECIALE FILTRO OLIO
840507
$10,25 Unit Price incl. VAT
22
ASTA LIVELLO OLIO COMPLETA
879081
$5,38 Unit Price incl. VAT
23
GUARNIZIONE "O.R."
1A009397
$0,25 Unit Price incl. VAT

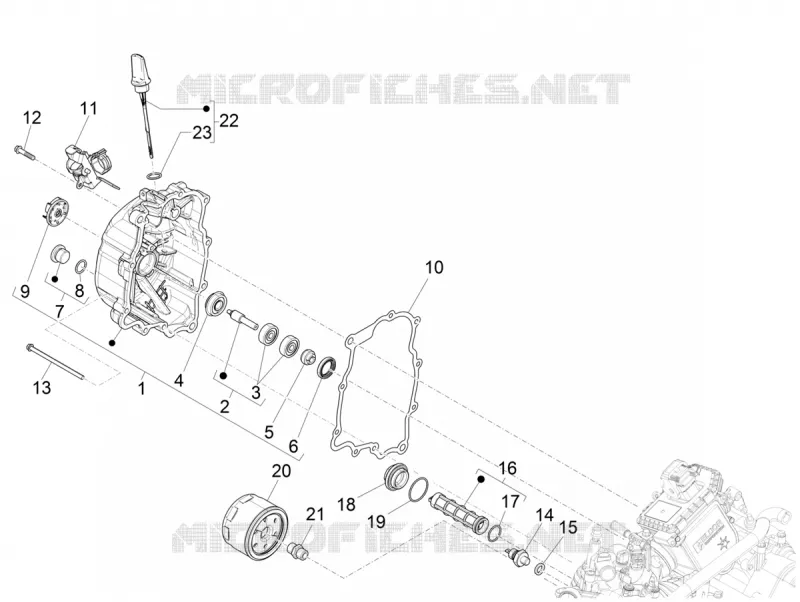

Find the detailed FLYWHEEL COVER - OIL FILTER GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
