1
Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog
HEADLIGHT - INDICATORS
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Driven pulley
HEADLIGHT - INDICATORS
1
2
3
4
5
6
6
7
8
8
9
10
10
10
10
11
11
11
11
12
12
12
12
1
PROIETTORE COMPLETO
1D003004
$398,95 Unit Price incl. VAT
2
VITE
296458
$2,25 Unit Price incl. VAT
3
CORNICE PROIETTORE
1B005763
$56,70 Unit Price incl. VAT
4
VITE
018536
$0,08 Unit Price incl. VAT
5
PIASTRINA ELASTICA
CM017403
$0,50 Unit Price incl. VAT
6
Front right turn indicator
1D000475
Not Available
6
Clignotant avant D
1D002895
Not Available
7
LAMPADA 12V-6W ALOGENA AMBRA
1D000261
$21,87 Unit Price incl. VAT
8
Front left turn indicator
1D000476
Not Available
8
Clignotant avant G
1D002896
Not Available
9
LAMPADA 12V-6W ALOGENA AMBRA
1D000261
$21,87 Unit Price incl. VAT
10
VITE AUTOF. TC 3,5x19 UNI 6954-71
015728
$2,95 Unit Price incl. VAT
10
VITE TC AUTOF. AB 3,5x16 UNI 6954-71
008372
$2,95 Unit Price incl. VAT
11
PIASTRINA ELASTICA
CM017403
$0,50 Unit Price incl. VAT
11
PIASTRINA ELASTICA
CM017405
$3,65 Unit Price incl. VAT
12
RONDELLA 4,3X8X0,5
003054
$0,08 Unit Price incl. VAT
12
(*) RONDELLA PIANA
1B006623
$0,29 Unit Price incl. VAT

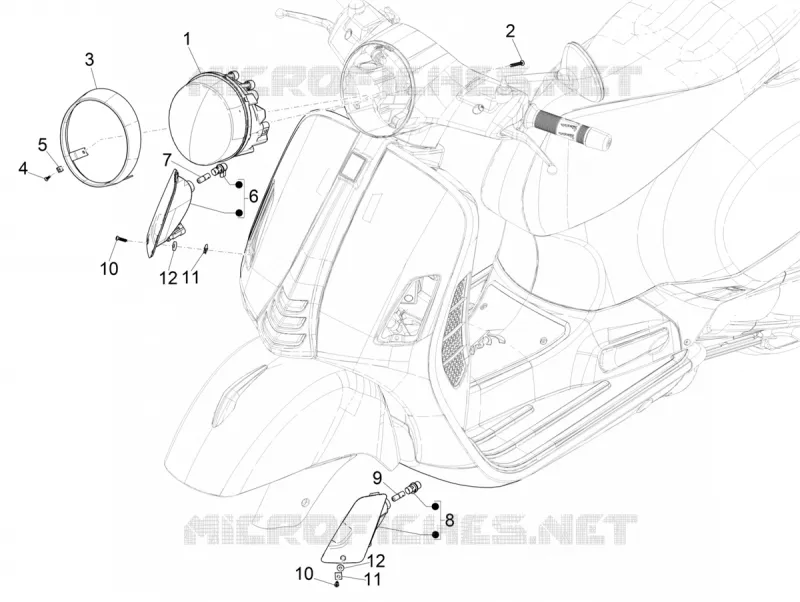

Find the detailed HEADLIGHT - INDICATORS GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
