1
Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Windshield - Glass
by
FLYWHEEL COVER - OIL FILTER
Fork/steering tube - Steering bearing unit
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
1
TUBO STERZO COMPLETO DI BRACCIO
1C0025285
$523,80 Unit Price incl. VAT
2
BRACCIO SOSPENSIONE SX CON P.I.
6483975
$109,60 Unit Price incl. VAT
3
BOCCOLA A RULLINI
198513
$5,97 Unit Price incl. VAT
4
ANELLO DI TENUTA
119219
$0,67 Unit Price incl. VAT
5
GUARNIZIONE
006731
$0,34 Unit Price incl. VAT
6
SPINOTTO
177451
$3,03 Unit Price incl. VAT
7
RALLA INFERIORE (EX 650075)
65007545
$25,55 Unit Price incl. VAT
8
RALLA SUPERIORE
65069345
$19,08 Unit Price incl. VAT
9
RONDELLA FR.SUP.STERZO.
582787
$3,65 Unit Price incl. VAT
10
GHIERA TUBO STERZO
0111094
$2,60 Unit Price incl. VAT
11
COLLARINO DI PROTEZION
582828
$4,82 Unit Price incl. VAT
12
COPERTURA SOSPENSIONE ANTERIORE COMPLETA
1C001153
$24,90 Unit Price incl. VAT
13
VITE METRICA IMP. TORX(H=16)
CM179301
$0,25 Unit Price incl. VAT
14
DADO ES.FLG.M6 DIN-6923
288245
$0,16 Unit Price incl. VAT
15
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
16
RONDELLA ELASTICA BOMBATA
012528
$0,34 Unit Price incl. VAT
17
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
18
AMMORTIZZATORE ANTERIORE COMPLETO
1C004530R
$163,61 Unit Price incl. VAT
19
TAMPONE PER ATTACCO AMMORTIZZATORE
174874
$2,36 Unit Price incl. VAT
20
MENSOLA ATTACCO AMMORTIZZ.CON P.I.
601556
$7,73 Unit Price incl. VAT
21
MOLLETTA ELASTICA
231590
$0,25 Unit Price incl. VAT
22
TAMPONE PER ATTACCO AMMORTIZZATORE
174085
$1,18 Unit Price incl. VAT
23
RONDELLA
174088
$0,84 Unit Price incl. VAT
24
ROSETTA ELASTICA CON DENTATURA
012535
$0,08 Unit Price incl. VAT
25
DADO ESAGONALE BASSO
021210
$0,16 Unit Price incl. VAT
26
VITE
597150
$3,65 Unit Price incl. VAT
27
RONDELLA ELASTICA
016408
$0,08 Unit Price incl. VAT
28
ANELLO O.R.
177408
$0,08 Unit Price incl. VAT
29
RONDELLA
177445
$0,34 Unit Price incl. VAT
30
SUPPORTO AMMORTIZZAT.E PINZA COMPLETO
1C0025295
$79,16 Unit Price incl. VAT
31
Anello di tenuta
1C001969
$4,04 Unit Price incl. VAT
32
Drawn cap
177436
$9,18 Unit Price incl. VAT
33
ANELLO DI TENUTA
177494
$1,85 Unit Price incl. VAT
34
VITE T.C.ESAG.INC.M8x40 UNI 5931-84 8.8
149104
$0,51 Unit Price incl. VAT
35
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
36
RONDELLA
177414
$0,75 Unit Price incl. VAT
37
ANELLO ELASTICO PER ALBERO
006422
$0,16 Unit Price incl. VAT
38
ANELLO DI TENUTA
177443
$1,77 Unit Price incl. VAT
39
ASTUCCIO A RULLINI
177442
$4,04 Unit Price incl. VAT
40
DISCO FRENO
56484R
$35,10 Unit Price incl. VAT
41
Roue phonique ABS avant
669115Z
Not Available
42
VITE TORX.
5A000656
$0,67 Unit Price incl. VAT
43
MOZZO RUOTA ANTER. C.P.I.
650907
$46,15 Unit Price incl. VAT
44
CUSCINETTO
177610
$8,41 Unit Price incl. VAT
45
ANELLO ELASTICO
006635
$0,25 Unit Price incl. VAT
46
DADO ESAGONALE NORMALE
021114
$0,51 Unit Price incl. VAT
47
CAPPELLOTTO
177609
$2,19 Unit Price incl. VAT
48
COPIGLIA
012789
$0,16 Unit Price incl. VAT
49
TAPPO
1C000523
$9,49 Unit Price incl. VAT
50
Front suspension arm cover
561433
Not Available
51
ABS sensor
1D0001275
Not Available
52
VITE TBEI IMPRONTA TORX M5X16
880285
$3,65 Unit Price incl. VAT
53
RONDELLA ONDULATA (5,3X10X0,5)
006975
$0,17 Unit Price incl. VAT
54
RONDELLA
669282
$1,43 Unit Price incl. VAT
55
TAPPO FONDO FORCELLA
601026
$0,84 Unit Price incl. VAT
56
STAFFA SUPPORTO TUBAZIONE FRENO
1C001228
$12,30 Unit Price incl. VAT

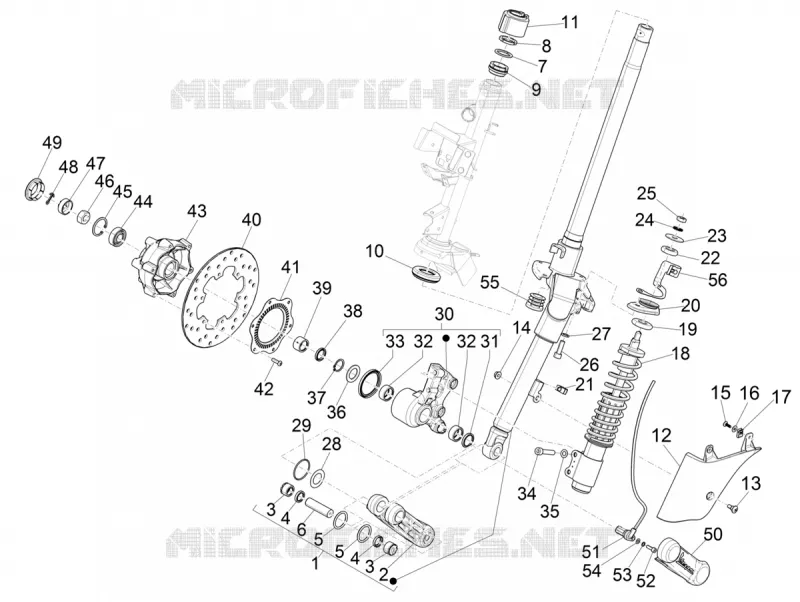

Find the detailed Fork/steering tube - Steering bearing unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
