Parts Catalog
Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Locks
by
Handlebars coverages

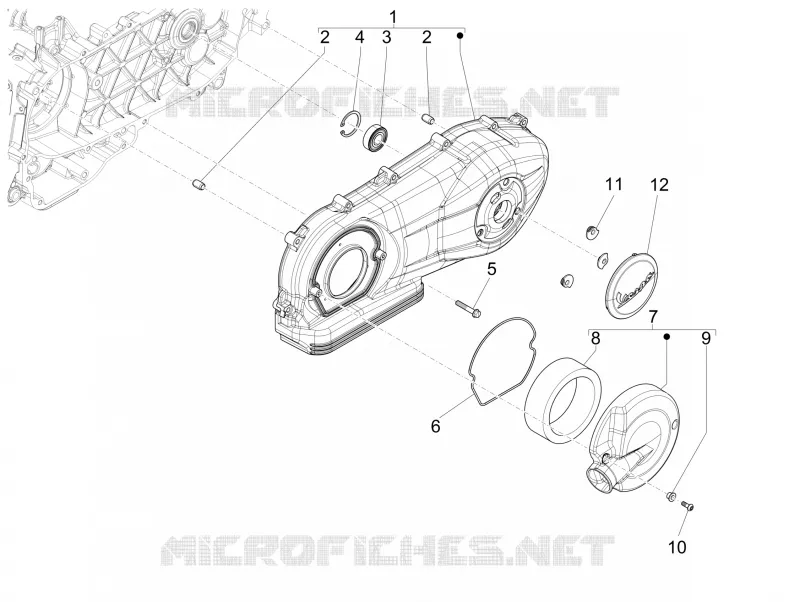

Crankcase cover - Crankcase cooling
1
2
2
3
4
5
6
7
8
9
10
11
12
1
Transmission cover with U.P.
B0169455
$103,95 Unit Price incl. VAT
2
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
3
Radial bearing 15x35x11
4789853
$6,05 Unit Price incl. VAT
4
Snap ring
006635
$0,25 Unit Price incl. VAT
5
screw M6x35
414838
$0,67 Unit Price incl. VAT
6
Cover gasket
1A001027
$1,01 Unit Price incl. VAT
7
Cooling cover
B018342
$21,52 Unit Price incl. VAT
8
Filtering element
B018345
$2,94 Unit Price incl. VAT
9
Bushing
B015908
$1,18 Unit Price incl. VAT
10
Hex socket screw M5x14
B016455
$0,34 Unit Price incl. VAT
11
Retainer buffer
871458
$1,09 Unit Price incl. VAT
12
"""Vespa"" transmission small cover"
CM166001
$11,34 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
