1
Engine displacement
125
2
Model
946
3
Year
2013
4
Trim
946 125 4T 3V ABS E3
5
Parts Catalog

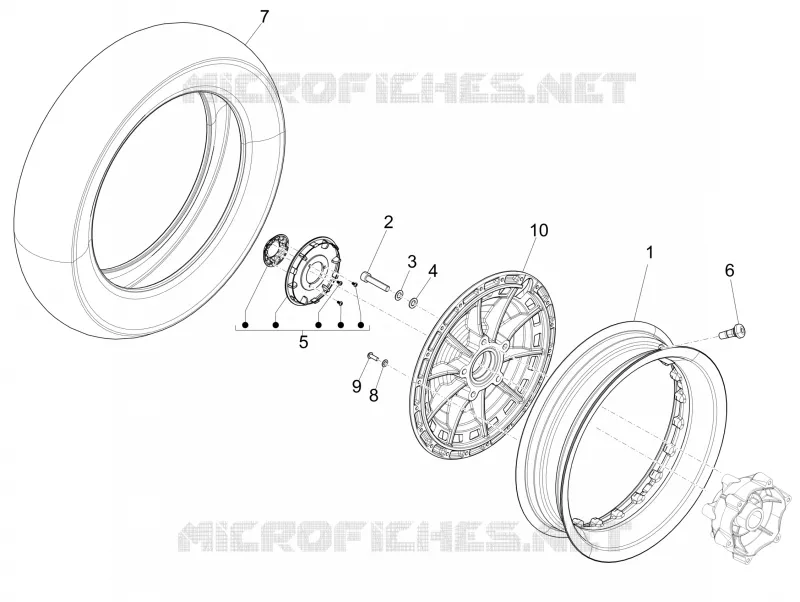

Front wheel
6
Parts Diagram
Parts Catalog
Flywheel magneto cover - Oil filter
by
Wheel huosing - Mudguard
Front wheel
1
2
3
4
5
6
7
8
9
10
1
Wheel
1C0005124
$412,83 Unit Price incl. VAT
1
Wheel
1C0007184
Not Available
1
Wheel
1C0007185
Not Available
2
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
3
Spring washer
709047
$0,08 Unit Price incl. VAT
4
Washer
016604
$2,99 Unit Price incl. VAT
5
Handlebar cover
1C002787
$141,26 Unit Price incl. VAT
5
Handlebar cover
669061
$47,20 Unit Price incl. VAT
5
Handlebar cover
1C001056
$47,20 Unit Price incl. VAT
6
Tubeless valve
597679
$3,03 Unit Price incl. VAT
7
(Michelin) Tyre 120/70-12"
666404
Not Available
7
Michelin 120/70-12" tyre
1C000742
Not Available
8
Plain washer 5,4x10x0,8
003055
$0,08 Unit Price incl. VAT
9
Torx Screw
669057
$1,51 Unit Price incl. VAT
10
Wheel hub
1C000640
$248,53 Unit Price incl. VAT
10
Wheel hub
1C0027916
$248,53 Unit Price incl. VAT
10
Painted wheel hub
66859000HB
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
