1
Engine displacement
125
2
Model
946
3
Year
2013
4
Trim
946 125 4T 3V ABS E3
5
Parts Catalog
Locks
6
Parts Diagram
Parts Catalog
Fuel tank
by
Crankcase cover - Crankcase cooling
Locks
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
2
1
1
Lock kit
675565
$113,74 Unit Price incl. VAT
2
Gasket ring
298731
$0,25 Unit Price incl. VAT
3
Hewn key with transponder
1B000462
$90,62 Unit Price incl. VAT
4
Nut
020207
$0,08 Unit Price incl. VAT
5
Lock hook
1B000064
$5,30 Unit Price incl. VAT
6
Cam
1B000050
$6,73 Unit Price incl. VAT
7
Saddle lock
CM023709
$10,09 Unit Price incl. VAT
8
Self-tapping screw M6x14
1B000068
$0,92 Unit Price incl. VAT
9
Commutator cap
582041
$3,11 Unit Price incl. VAT
10
Immobilizer antenna
638534
Not Available
11
Key switch
643133
Not Available
12
Lock body
781153
Not Available
13
Complete lock block
298903
Not Available
14
Flat washer
298594
$1,01 Unit Price incl. VAT
15
Cylinder retainer spring
298838
$0,51 Unit Price incl. VAT
16
Spacer
574132
$0,25 Unit Price incl. VAT
17
Spring
253937
$0,25 Unit Price incl. VAT

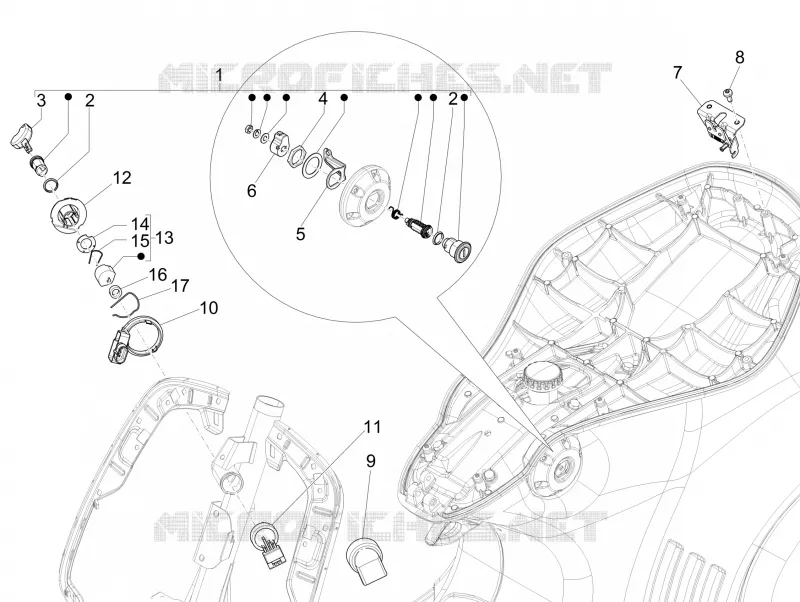

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
