Engine displacement
125
2
Model
946
3
Year
2013
4
Trim
946 125 4T 3V ABS E3
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Rear wheel
by
Fuel tank
Swinging arm
1
2
2
3
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
1
Complete swinging arm on frame side
668632
$93,48 Unit Price incl. VAT
2
Bush
598917
$0,67 Unit Price incl. VAT
3
Roller cage
600161
$6,98 Unit Price incl. VAT
4
Engine side swinging arm
668635
$230,09 Unit Price incl. VAT
5
Bush
597317
$0,92 Unit Price incl. VAT
6
Roller cage
56127R
$5,55 Unit Price incl. VAT
7
Hex socket screw M12x324
597914
$14,12 Unit Price incl. VAT
8
Washer
266845
$0,50 Unit Price incl. VAT
9
Spacer
1C000439
$20,93 Unit Price incl. VAT
10
Nut M12
271740
$0,67 Unit Price incl. VAT
11
screw M10x220
598237
$7,65 Unit Price incl. VAT
12
Flat washer
178790
$0,51 Unit Price incl. VAT
13
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
14
Spacer
1C000440
$15,38 Unit Price incl. VAT
15
Complete silent block support bracket
668728
$124,33 Unit Price incl. VAT
16
Silent-block
272750
$12,52 Unit Price incl. VAT
17
Bush
273460
$0,75 Unit Price incl. VAT
18
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
19
Tyre
669251
$9,33 Unit Price incl. VAT
20
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
21
screw M10x220
598237
$7,65 Unit Price incl. VAT
22
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
23
Washer
012535
$0,08 Unit Price incl. VAT
24
Hex socket screw
597893
$0,67 Unit Price incl. VAT
25
Silent-block
668514
Not Available
26
Circlip
006416
$0,08 Unit Price incl. VAT

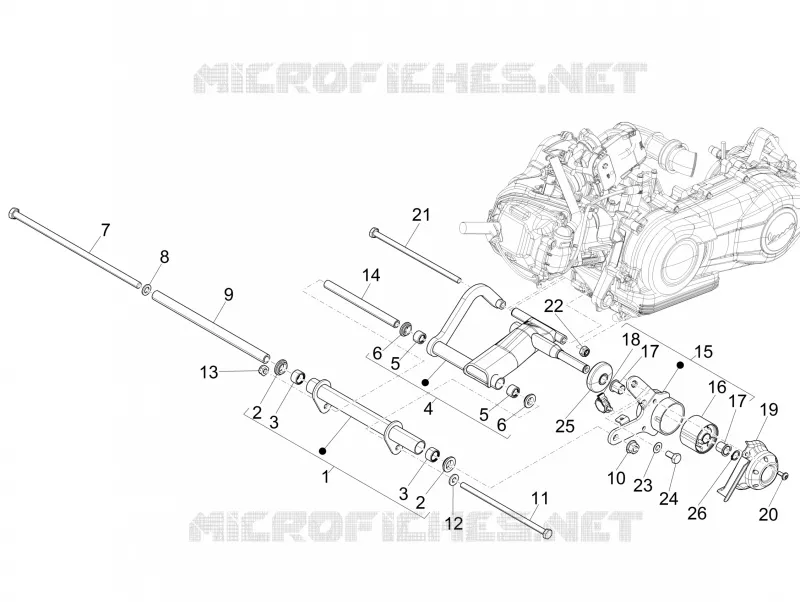

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
