Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Engine, assembly
by
Cylinder head cover
Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
1
C cat. complete piston
B0180110003
$66,39 Unit Price incl. VAT
1
D cat. complete piston
B0180110004
$76,49 Unit Price incl. VAT
1
A cat. complete piston
B0180110001
$102,02 Unit Price incl. VAT
1
B cat. complete piston
B0180110002
$68,61 Unit Price incl. VAT
2
Piston pin
1A002865R
$7,23 Unit Price incl. VAT
3
Circlip
B015602
$0,25 Unit Price incl. VAT
4
Compression ring 1° cava
B017544
$16,59 Unit Price incl. VAT
5
Compression ring 2° cava
B017545
$16,59 Unit Price incl. VAT
6
Oil scraper ring 3° cava
B017546
$25,10 Unit Price incl. VAT
7
Cyl.pist.-wrist pin assy unit
1A000771
$215,33 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,8 mm
B015443
Not Available
8
Crankcase/cylinder gasket 0,6 mm
B015442
$8,65 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,4 mm
B015441
Not Available

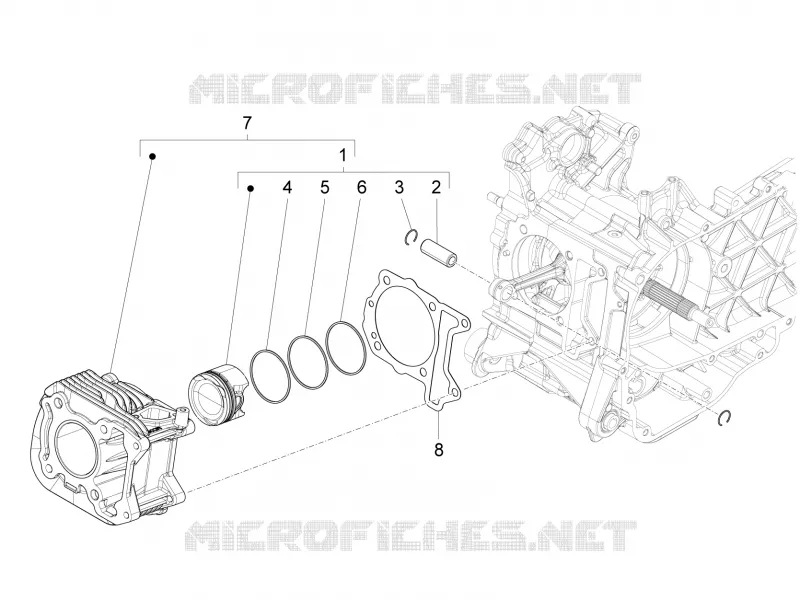

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
