1
Engine displacement
125
2
Model
946
3
Year
2013
4
Trim
946 125 4T 3V ABS E3
5
Parts Catalog
Driving pulley
6
Parts Diagram
Parts Catalog
Anti-percolation system
by

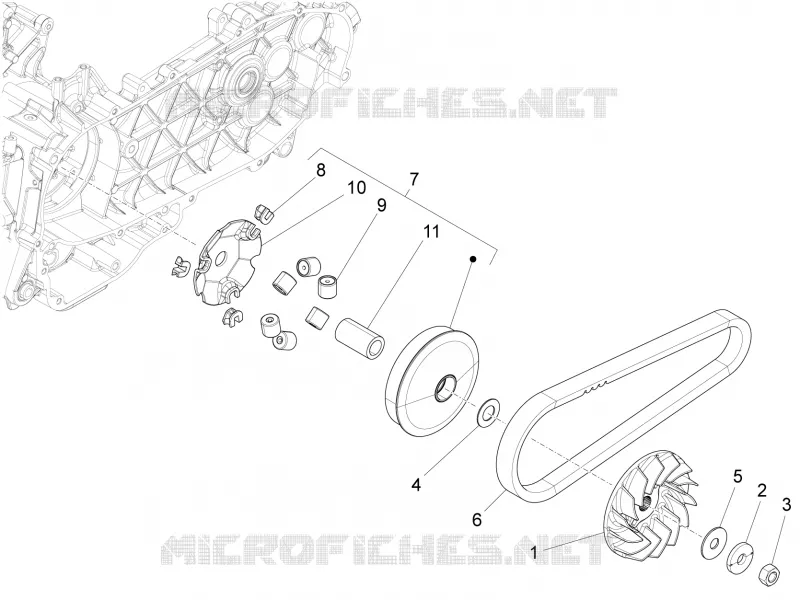

Driving pulley
1
2
3
4
5
6
7
8
9
10
11
1
Fixed driving half pulley
876921
$20,68 Unit Price incl. VAT
2
Belleville spring
880950
$2,69 Unit Price incl. VAT
3
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT
4
Plain washer
831363
$1,18 Unit Price incl. VAT
5
Flat washer 12.1x36x2
840533
$1,60 Unit Price incl. VAT
6
(Mitsuboshi) V-belt
841213
$113,91 Unit Price incl. VAT
7
Complete roller housing
CM167601
$40,66 Unit Price incl. VAT
8
Sliding block
B017219
$2,19 Unit Price incl. VAT
9
roller complete
B017946
Not Available
10
Roller contrast
842204
$8,31 Unit Price incl. VAT
11
Spacer
483889
$19,92 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
