1
Engine displacement
125
2
Model
946
3
Year
2013
4
Trim
946 125 4T 3V ABS E3
5
Parts Catalog

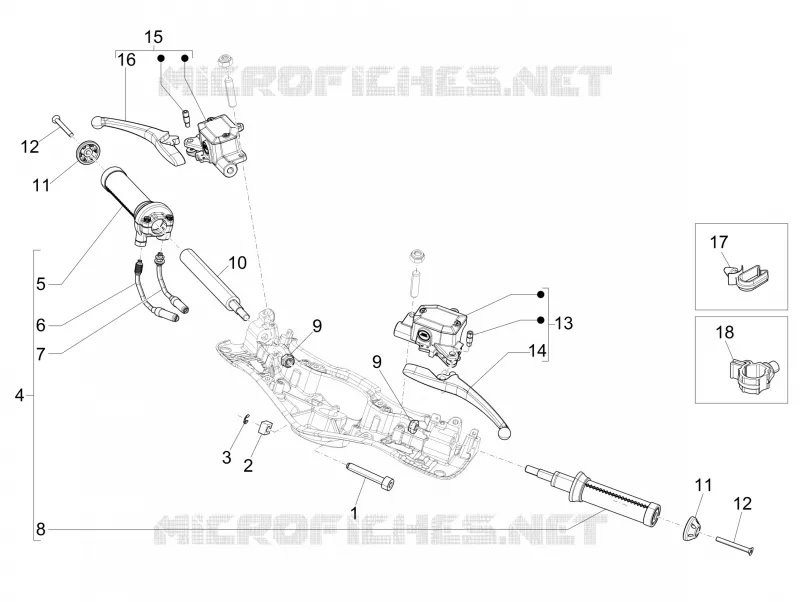

Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Rear cover - Splash guard
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
9
10
11
11
12
12
13
14
15
16
17
18
1
Hex socket screw
1B000324
$31,61 Unit Price incl. VAT
2
Nut
070620
$2,61 Unit Price incl. VAT
3
Ring
005967
$0,08 Unit Price incl. VAT
4
Throttle control sleeve assembly
1C002786
$409,05 Unit Price incl. VAT
4
Throttle control sleeve assembly
1C000422000C2
$531,79 Unit Price incl. VAT
4
Throttle control sleeve assembly
1C000422000C1
$531,79 Unit Price incl. VAT
5
Complete right hand grip
CM258405
$183,60 Unit Price incl. VAT
5
Complete right hand grip
CM258401000C2
$237,16 Unit Price incl. VAT
5
Complete right hand grip
CM258401000C1
$237,16 Unit Price incl. VAT
6
Transmission
669121
$77,40 Unit Price incl. VAT
7
Transmission
669122
$34,45 Unit Price incl. VAT
8
Complete left hand grip
CM258406
$183,60 Unit Price incl. VAT
8
Complete left hand grip
CM258402000C1
$237,16 Unit Price incl. VAT
8
Complete left hand grip
CM258402000C2
$237,16 Unit Price incl. VAT
9
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
10
Handlebar insert
675571
$22,95 Unit Price incl. VAT
11
Terminal
676220
$39,20 Unit Price incl. VAT
12
Screw
1B000604
$2,95 Unit Price incl. VAT
13
Rear brake lever hydraulic pump
CM089903
$134,19 Unit Price incl. VAT
14
Rear brake lever
1C000155
$31,05 Unit Price incl. VAT
15
Front brake lever hydraulic pump
CM089904
$134,19 Unit Price incl. VAT
16
Front brake lever
1C000156
$33,75 Unit Price incl. VAT
17
Hose clamp
217280
Not Available
18
Non return spring L=12
CM006905
$1,35 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
