Engine displacement
125
2
Model
946
3
Year
2013
4
Trim
946 125 4T 3V ABS E3
5
Parts Catalog
Cylinder head cover
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Rear wheel
Cylinder head cover
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Head cover
B013837
$20,26 Unit Price incl. VAT
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3
Spark plug hole gasket
B015566
$2,61 Unit Price incl. VAT
3
Spark plug hole gasket
B017488
$2,10 Unit Price incl. VAT
4
Big end cover gasket
1A002462
$4,04 Unit Price incl. VAT
5
Big end/hood gasket
879479
$5,21 Unit Price incl. VAT
6
Oil bleed cover
B015453
$18,75 Unit Price incl. VAT
7
Torx Screw M5x20
B016808
$0,20 Unit Price incl. VAT
8
Gasket
487989
Not Available
8
Gasket
1A003985
$1,60 Unit Price incl. VAT
9
Blow-by pipe
1A000335
$5,88 Unit Price incl. VAT
10
Hose clamp
1D000070
$1,93 Unit Price incl. VAT
11
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
12
Spark plug (NGK) CR8EB
638853
$23,20 Unit Price incl. VAT
13
Exhaust side hood
1A0011245
$49,18 Unit Price incl. VAT
14
Temp. Sensor
58273R
$14,46 Unit Price incl. VAT
15
Intake side hood
1A004169
Not Available
15
Intake side hood
879489
$7,69 Unit Price incl. VAT
16
screw
259577
$0,17 Unit Price incl. VAT
16
Special cap screw
1A001680
$0,25 Unit Price incl. VAT
17
Washer Ø5xØ12x1.1
828583
$0,08 Unit Price incl. VAT

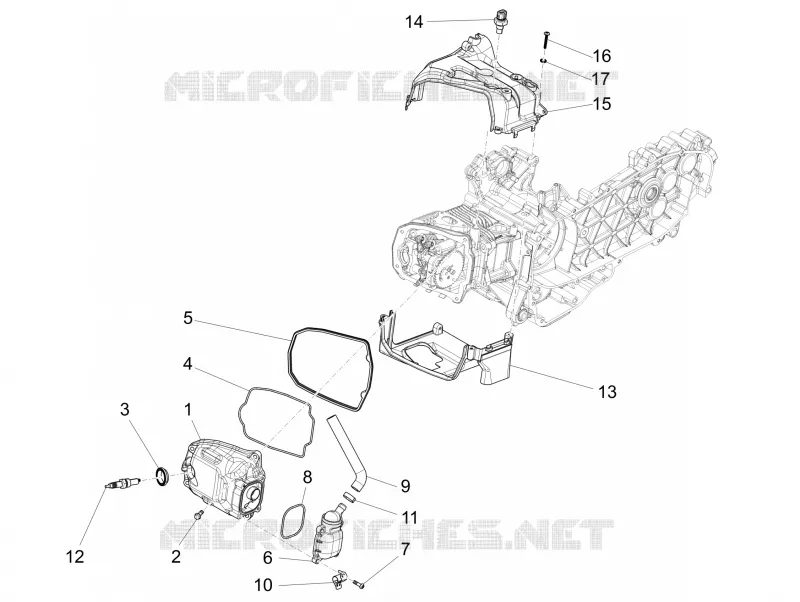

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
