1
Engine displacement
200
2
Model
X8
3
Year
2005
4
Trim
X8
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Plates - Emblems
by
Crankcase cover - Crankcase cooling
Swinging arm
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Swinging arm
597503
Not Available
1
COMPLETE CHASSIS SIDE SWINGING ARM
56335R
Not Available
2
Roller cage
597374
Not Available
3
Swinging arm
599665
$179,38 Unit Price incl. VAT
4
Roller cage
597374
Not Available
5
STAFFA SUPP.SILENTBLOC
599669
$56,12 Unit Price incl. VAT
6
SILENT BLOCK
272750
$12,52 Unit Price incl. VAT
7
BUSSOLA
273460
$0,75 Unit Price incl. VAT
8
DADO FLANG.AUTOFR.TRIB M10 6H CH.15
564878
$2,99 Unit Price incl. VAT
9
VITE TESTA ES. INTERAMENTE FILETTATO
597893
$0,67 Unit Price incl. VAT
10
STAFFA DX SOSPENSIONE MOTORE
598899
$67,62 Unit Price incl. VAT
11
ANELLO ELASTICO 47x50,5x1,75
006647
$1,10 Unit Price incl. VAT
12
DADO M8-6H
020008
$0,08 Unit Price incl. VAT
13
CUSCINETTO RADIALE RIGIDO
82545R
$12,11 Unit Price incl. VAT
14
ANELLO DI RITEGNO
829377
$0,19 Unit Price incl. VAT
15
Swinging arm cover
597016
Not Available

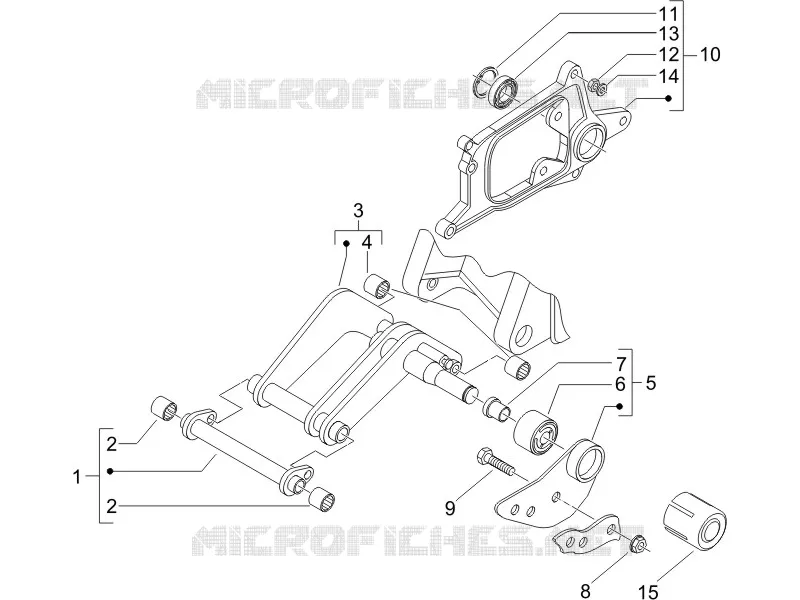

Find the detailed Swinging arm GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
