Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Remote control switches - Battery - Horn
Cooling system
1
2
3
4
5
6
7
8
9
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Coolant tank
575541
Not Available
2
Tank cap
573454
Not Available
2
TAPPO SERB.LIQUIDO RAF
623673
$15,97 Unit Price incl. VAT
3
Guard
597064
Not Available
4
TUBI COLLEGAMENTO POMPA-RADIATORE
620987
$10,84 Unit Price incl. VAT
5
TUBO COLLEGAMENTO TESTA-RADIATORE
620988
$11,45 Unit Price incl. VAT
6
Fan engine
621030
Not Available
7
STAFFA SERBATOIO LIQUIDO RAFFREDDAMENTO
621090
$1,97 Unit Price incl. VAT
8
TUBO RITORNO RADIATORE-VASO ESPANSIONE
621311
$1,53 Unit Price incl. VAT
9
FASCETTA STRINGITUBO
CM001903
$0,84 Unit Price incl. VAT
10
FASCETTA STRINGITUBO
CM001904
$0,75 Unit Price incl. VAT
11
FASCETTA STRINGITUBO
CM001907
$0,84 Unit Price incl. VAT
12
FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)
CM001908
$3,65 Unit Price incl. VAT
13
MOLLETTA RITEGNO TUBI
CM006903
$1,43 Unit Price incl. VAT
14
TUBO RAFFREDDAMENTO
CM007001
$2,61 Unit Price incl. VAT
15
Spring
CM017802
Not Available
16
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
17
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
18
GUARNIZIONE INIETTORE
168077
$3,65 Unit Price incl. VAT
19
TERMOINTERRUTTORE
584715
$24,35 Unit Price incl. VAT
20
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
21
TAMPONE
258904
$0,25 Unit Price incl. VAT
22
VITE
259708
$3,70 Unit Price incl. VAT
23
VITE AUTOFILETTANTE PER MATERIE PLAST.
268596
$0,08 Unit Price incl. VAT
24
TAMPONE
258904
$0,25 Unit Price incl. VAT
25
GUARNIZIONE SERBATOIO ESP.
620737
$4,82 Unit Price incl. VAT
26
FASCETTA A STRAPPO
257134
$0,25 Unit Price incl. VAT
27
RADIATORE ACQUA
57312R
$86,34 Unit Price incl. VAT

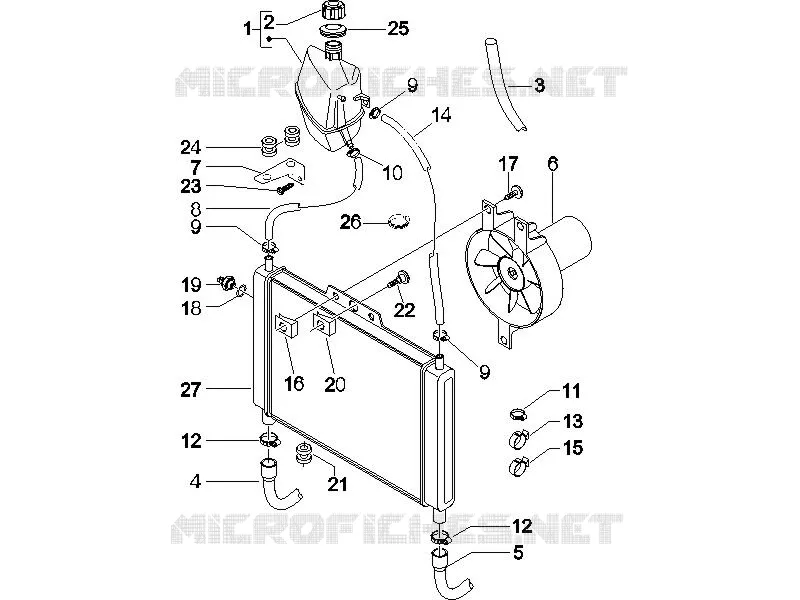

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
