Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Front wheel
by
Windshield - Glass
Rear suspension - Shock absorber/s
1
2
3
3
4
4
5
6
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Rear shock absorber cpl.
56235R
Not Available
2
plate
599890
Not Available
3
RONDELLA PIANA
178790
$0,51 Unit Price incl. VAT
4
VITE FLANGIATA
598838
$1,46 Unit Price incl. VAT
5
STAFFA FISS.AMMORTIZZATORE POST.
598938
$7,01 Unit Price incl. VAT
6
VITE TE PARZ.FIL. M10x45 UNI 5737-65
015578
$2,99 Unit Price incl. VAT
7
DADO M8-6H
020008
$0,08 Unit Price incl. VAT
8
SCREW
436787
Not Available
9
Washer
709646
Not Available
10
VITE T.C.E.I. M8X50
844483
$0,67 Unit Price incl. VAT
11
DISTANZIALE
CM067801
$6,51 Unit Price incl. VAT
12
DISTANZIALE
CM067803
$11,11 Unit Price incl. VAT
13
ANELLO ELASTICO
006416
$0,08 Unit Price incl. VAT
14
DADO AUTOFR. M10-6H CH.17
231370
$0,38 Unit Price incl. VAT
15
Self locking nut M10
232108
Not Available
16
VITE
271807
$4,41 Unit Price incl. VAT
17
DADO
564611
$3,65 Unit Price incl. VAT
18
DADO FLANG.AUTOFR.TRIB M10 6H CH.15
564878
$2,99 Unit Price incl. VAT
19
VITE TESTA ESAG. PARZIALM. FILETTATO
597080
$6,60 Unit Price incl. VAT
20
VITE TESTA ESAG. PARZIALM. FILETTATO
597081
$5,20 Unit Price incl. VAT
21
MOLLA
597490
$4,82 Unit Price incl. VAT
22
BUSSOLA FILETTATA
597774
$15,31 Unit Price incl. VAT

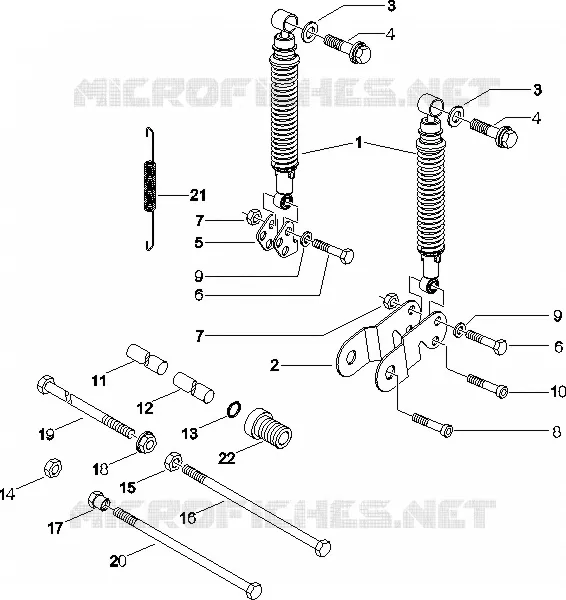

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
