1
Engine displacement
200
2
Model
X8
3
Year
2005
4
Trim
X8
5
Parts Catalog

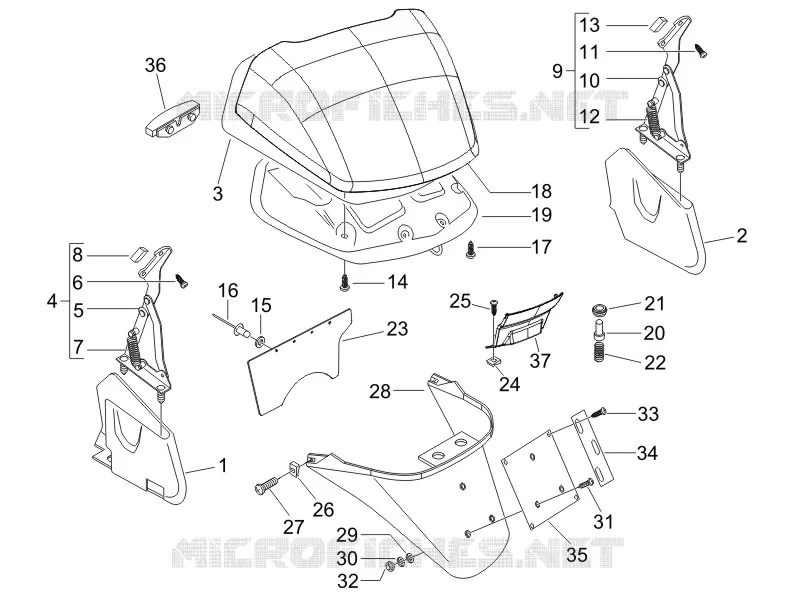

Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Stand/s
by
Fuel tank
Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
PROTEZIONE CERNIERA SX
CM024201
$2,41 Unit Price incl. VAT
2
PROTEZIONE CERNIERA DX
CM024202
$2,41 Unit Price incl. VAT
3
GUARNIZ. BAULIERA POST
561449
$24,14 Unit Price incl. VAT
4
Hinge with spring and buffer
CM177401
Not Available
4
Hinge
CM024001
Not Available
5
LH HINGE
CM016001
Not Available
6
VITE AUTOFILETTANTE
296141
$0,08 Unit Price incl. VAT
7
Spring
621127
$5,38 Unit Price incl. VAT
7
MOLLA
653896
$5,38 Unit Price incl. VAT
8
Pad
621492
Not Available
9
Hinge
CM024002
Not Available
9
Hinge with spring and left buffer
CM177402
Not Available
10
RH HINGE
CM016002
Not Available
11
VITE AUTOFILETTANTE
296141
$0,08 Unit Price incl. VAT
12
Spring
621127
$5,38 Unit Price incl. VAT
12
MOLLA
653896
$5,38 Unit Price incl. VAT
13
Pad
621492
Not Available
14
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
15
RONDELLA PIANA 12x4,5x1
016670
$0,09 Unit Price incl. VAT
16
RIVETTO
252099
$3,65 Unit Price incl. VAT
17
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT
18
BOOT DOOR UNPAINTED
620254
Not Available
18
PORTELLO BAULIERA
6202540090
$83,17 Unit Price incl. VAT
19
CONTROSPORTELLO BAULIERA
620758
$40,90 Unit Price incl. VAT
20
PERNO PULSANTE
621097
$1,34 Unit Price incl. VAT
21
SEDE PERNO PULSANTE
621098
$1,34 Unit Price incl. VAT
22
MOLLA
621099
$0,34 Unit Price incl. VAT
23
PARASPRUZZI PROTEZ.MOTORE
621329
$7,23 Unit Price incl. VAT
24
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
25
Self-tap screw
576189
$0,05 Unit Price incl. VAT
26
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
27
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
28
PARASPRUZZI
620256000P
$12,53 Unit Price incl. VAT
29
RONDELLA PIANA METALLICA (12x4,2x1)
013763
$0,08 Unit Price incl. VAT
30
RONDELLA ELASTICA
016404
$0,42 Unit Price incl. VAT
31
screw M4x14
018591
Not Available
32
DADO M4 - 6H
020104
$1,26 Unit Price incl. VAT
33
VITE AUTOFILETTANTE PER MATERIE PLAST.
268596
$0,08 Unit Price incl. VAT
34
PROLUNGA PER PORTATARGA
584877
$1,43 Unit Price incl. VAT
35
PORTATARGA
584884
$2,30 Unit Price incl. VAT
36
COLLEGAMENTO GUARNIZIONE P/CASCO
621347
$6,15 Unit Price incl. VAT

Find the detailed Rear cover - Splash guard GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
