1
Engine displacement
200
2
Model
X8
3
Year
2005
4
Trim
X8
5
Parts Catalog
Driven pulley
6
Parts Diagram
Parts Catalog
Secondary air box
by
Locks
Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Secondary pulley
82745R
Not Available
2
Sec. fixed sheave, complete
833669
Not Available
3
ANELLO ELASTICO
483226
$0,72 Unit Price incl. VAT
4
ASTUCCIO RULLINI 20.29.18
82518R
$12,62 Unit Price incl. VAT
5
Radial bearing 17x30
483261
Not Available
5
CUSCINETTO A SFERE
82753R
$19,17 Unit Price incl. VAT
6
ANELLO DI TENUTA k9
431089
$2,55 Unit Price incl. VAT
7
MOLLA CONTRASTO VARIATORE
833673
$8,77 Unit Price incl. VAT
8
PERNO FRIZIONE
828717
$0,34 Unit Price incl. VAT
9
SCODELLINO LATO FRIZIONE
487936
$5,73 Unit Price incl. VAT
10
SCODELLINO LATO PULEGGIA
833674
$9,70 Unit Price incl. VAT
11
Centrifugal clutch assy
CM1440075
$141,75 Unit Price incl. VAT
11
CLUTCH SHOES ASSY BEVERLY
842376
Not Available
11
CLUTCH SHOES ASSY
842377
Not Available
12
GHIERA
433232
$2,31 Unit Price incl. VAT
13
GUARNIZIONE A SEZ.CIRCOLARE
430585
$4,89 Unit Price incl. VAT
14
ANELLO DI TENUTA (O-RING)
834044
$3,65 Unit Price incl. VAT
15
VENTOLA GR.FRIZIONE
482305
$9,99 Unit Price incl. VAT
16
Sec. sliding sheave, complete
833672
Not Available
17
ANELLO
006410
$2,74 Unit Price incl. VAT
18
TAMBURO FRIZIONE (era 844049)
8440494
$26,86 Unit Price incl. VAT
18
Clutch drum
844049
Not Available
19
RONDELLA PIANA D22 F12,1 S1
274246
$0,34 Unit Price incl. VAT
20
DADO ESAGONALE NORMALE
486324
$0,50 Unit Price incl. VAT

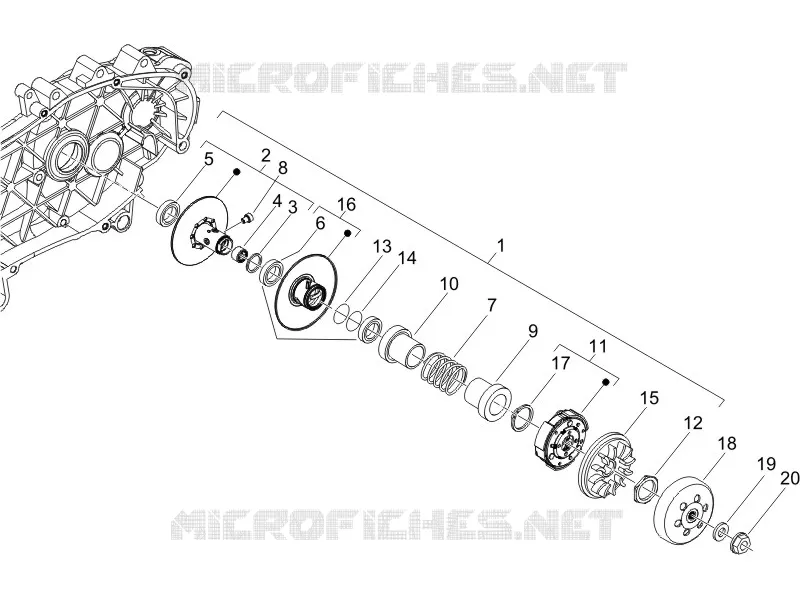

Find the detailed Driven pulley GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
