1
Engine displacement
200
2
Model
X8
3
Year
2005
4
Trim
X8
5
Parts Catalog
Helmet huosing - Undersaddle
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Plates - Emblems
Helmet huosing - Undersaddle
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
21
22
1
Helmet compartment
577944
Not Available
2
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
3
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
4
screw
265808
Not Available
5
Self tapping screw
270723
Not Available
6
PORTELLO ACCESSO CARBURATORE
620268
$8,92 Unit Price incl. VAT
7
TAPPO PORTACASCO
621831
$3,13 Unit Price incl. VAT
8
GUARNIZIONE PER PORTACASCO
622173
$7,23 Unit Price incl. VAT
9
BOCCOLA ZIGRINATA
830056
$0,34 Unit Price incl. VAT
10
VITE
018536
$0,08 Unit Price incl. VAT
11
PLAFONIERA (BAULIERA)
293154
$10,35 Unit Price incl. VAT
12
LAMPADINA A SILURO
071633
$8,81 Unit Price incl. VAT
14
RONDELLA PIANA METALLICA
013880
$0,08 Unit Price incl. VAT
15
DADO AUTOFR.TRIBL. M6 6H CH.10
219277
$0,16 Unit Price incl. VAT
16
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
17
RONDELLA PIANA 20 x 6,5 x 1,5
297029
$3,70 Unit Price incl. VAT
18
VITE
258249
$0,09 Unit Price incl. VAT
19
COPERCHIO ISP.OMOLOGAZ
576793
$5,38 Unit Price incl. VAT
21
Cover
620269
Not Available
22
Pad
575329
Not Available

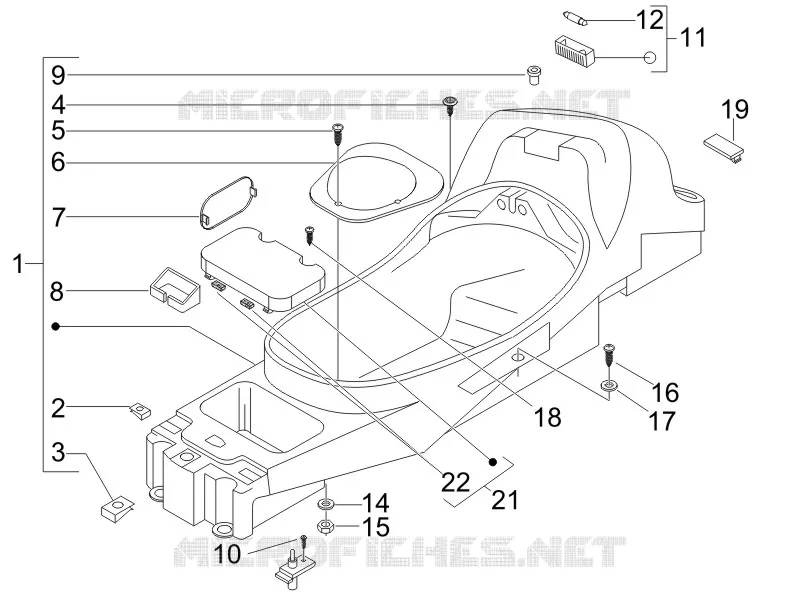

Find the detailed Helmet huosing - Undersaddle GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
