1
Engine displacement
200
2
Model
X8
3
Year
2005
4
Trim
X8
5
Parts Catalog

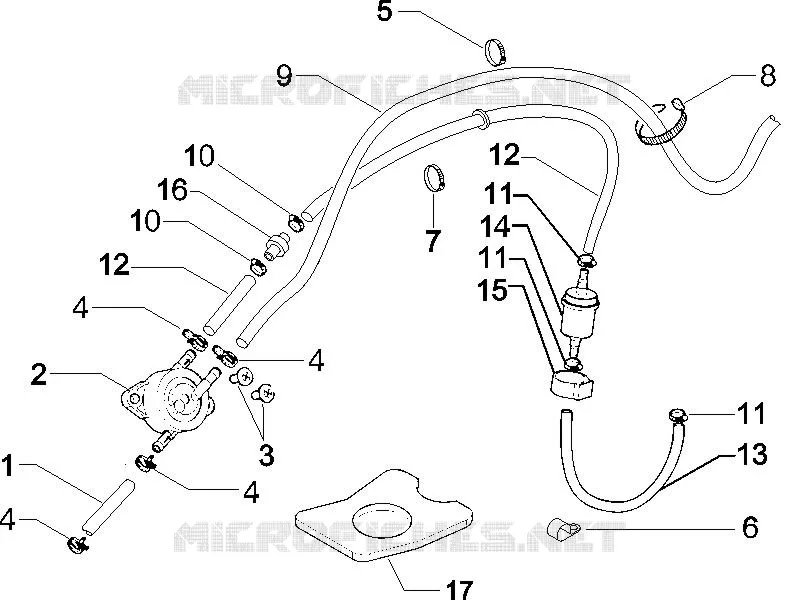

Supply system
6
Parts Diagram
Parts Catalog
Locks
by
Side cover - Spoiler
Supply system
1
2
3
4
4
4
4
5
6
7
8
9
10
10
11
11
11
12
12
13
14
15
16
17
1
Fuel pipe
CM004126
Not Available
2
Fuel pump
CM120901
$85,05 Unit Price incl. VAT
3
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
4
FASCETTA STRINGITUBO
CM002905
$0,42 Unit Price incl. VAT
5
MOLLETTA RITEGNO TUBI
CM006904
$0,25 Unit Price incl. VAT
6
MOLLETTA BORDI LAMIERA
CM013203
$0,67 Unit Price incl. VAT
7
MOLLETTA RITEGNO TUBI
CM017803
$5,38 Unit Price incl. VAT
8
FASCETTA A STRAPPO
257134
$0,25 Unit Price incl. VAT
9
Tank pipe
CM001424
Not Available
10
FASCETTA STRINGITUBO
CM002905
$0,42 Unit Price incl. VAT
11
FASCETTA STRINGITUBO
CM002907
$0,42 Unit Price incl. VAT
12
Fuel pipe
CM004126
Not Available
13
Fuel tube
CM006108
Not Available
14
FILTRO CARBURANTE
270423
$10,67 Unit Price incl. VAT
15
SUPPORTO ELASTICO
272842
$5,38 Unit Price incl. VAT
16
Valve
574633
Not Available
17
VASCHETTA RACCOLTA CARBURANTE
622240
$3,56 Unit Price incl. VAT

Find the detailed Supply system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
