1
Engine displacement
200
2
Model
X8
3
Year
2005
4
Trim
X8
5
Parts Catalog
Flywheel magneto
6
Parts Diagram
Parts Catalog
Front shield
by
Helmet huosing - Undersaddle
Flywheel magneto
1
2
3
4
5
6
7
8
9
1
VOLANO MAGNETE COMPLETO
58141R
$422,55 Unit Price incl. VAT
2
STATORE COMPLETO
584690
$39,60 Unit Price incl. VAT
3
ROTORE COMPLETO
584689
$29,70 Unit Price incl. VAT
3
Rotor, assy.
828090
Not Available
4
VITE TCCIC M5X22 (5.8)
828662
$0,25 Unit Price incl. VAT
5
Screw M5x10
018575
$2,95 Unit Price incl. VAT
6
Flanged nut M12
436783
Not Available
7
LINGUETTA A DISCO
000267
$1,19 Unit Price incl. VAT
8
RONDELLA PIANA
828535
$2,99 Unit Price incl. VAT
9
VITE CON TAMPONE VULCANIZZATO
82869R
$12,36 Unit Price incl. VAT

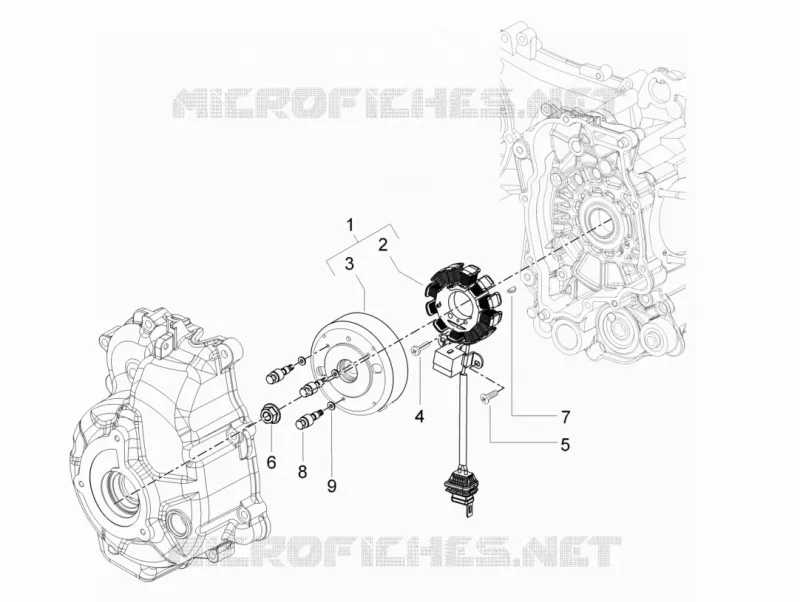

Find the detailed Flywheel magneto GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
