Engine displacement
125
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
MAIN WIRING HARNESS
6
Parts Diagram
Parts Catalog
Stand/s
by
Air filter
MAIN WIRING HARNESS
1
1
1
1
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
1
Faisceau de câbles du cadre
1D001991
$513,02 Unit Price incl. VAT
1
Faisceau de câbles du cadre
1D001551
$476,72 Unit Price incl. VAT
2
Cover
290404
$0,42 Unit Price incl. VAT
3
Fuse 40A
640394
$0,19 Unit Price incl. VAT
4
Mini fuse 5A
CM080904
$1,09 Unit Price incl. VAT
5
Mini fuse 7,5A
CM080905
$0,25 Unit Price incl. VAT
6
Mini fuse 10A
CM080906
$1,09 Unit Price incl. VAT
7
Mini-fusible 25A
CM080909
$0,65 Unit Price incl. VAT
8
Plugs spring
641599
$4,82 Unit Price incl. VAT
9
Plugs spring
1D000129
$1,42 Unit Price incl. VAT
10
Hose clamp 2,7x132
640879
$0,92 Unit Price incl. VAT
11
Fuse 15A
290860
$5,73 Unit Price incl. VAT
12
Support câblage
1D001287
$1,15 Unit Price incl. VAT
13
screw
CM179202
$0,25 Unit Price incl. VAT
14
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
15
Air pressure sensor
642786
$35,23 Unit Price incl. VAT
16
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
17
Ambient temperature sensor
581142
Not Available
18
Earth braid
581309
$3,49 Unit Price incl. VAT
19
Tri/lobed hexagonal self-tapping screw
641204
$0,34 Unit Price incl. VAT
20
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
21
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
22
screw M6x35
1A000348
$2,25 Unit Price incl. VAT
22
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
23
Plug connect diagnos ECU
582928
$1,01 Unit Price incl. VAT
24
Molletta
B005629
$0,84 Unit Price incl. VAT
25
Spring for connector
639560
$0,67 Unit Price incl. VAT
26
Plugs spring
1D000129
$1,42 Unit Price incl. VAT
27
Non return spring L=23
CM006908
$0,50 Unit Price incl. VAT
28
Plugs spring
641599
$4,82 Unit Price incl. VAT
29
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT

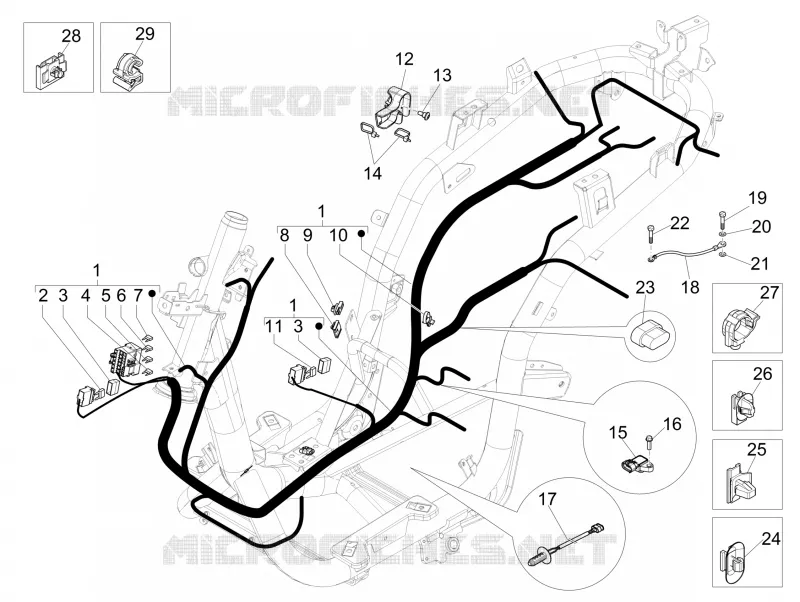

Find the detailed MAIN WIRING HARNESS GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
