Engine displacement
125
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Throttle body - Injector - Inlet manifold
6
Parts Diagram
Parts Catalog
Saddle/seats
by
Swinging arm
Throttle body - Injector - Inlet manifold
1
1
2
3
4
5
5
5
6
7
8
9
10
11
1
Corps à papillon cpl.
1A007304
Not Available
1
Throttle body cpl.
1A008379
$233,02 Unit Price incl. VAT
2
Vanne et support en caoutchouc
1A007936
$92,53 Unit Price incl. VAT
3
Tuyau vanne
1A007684
$2,61 Unit Price incl. VAT
4
Manchon corps papil.
1A006452
$4,38 Unit Price incl. VAT
5
Collier Durite
1A005690
$1,82 Unit Price incl. VAT
5
Collier Durite
1A015700
$4,23 Unit Price incl. VAT
5
Collier Durite
1A009429
$2,09 Unit Price incl. VAT
6
Injector assy fuel
1D000698
$71,03 Unit Price incl. VAT
7
Ring kit
1D001198
$3,61 Unit Price incl. VAT
8
Injector support
1A003696
$8,91 Unit Price incl. VAT
9
Bride de support tuyau de carburant
1A005008
$1,15 Unit Price incl. VAT
10
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
11
Protective hood
1A007645
$3,87 Unit Price incl. VAT

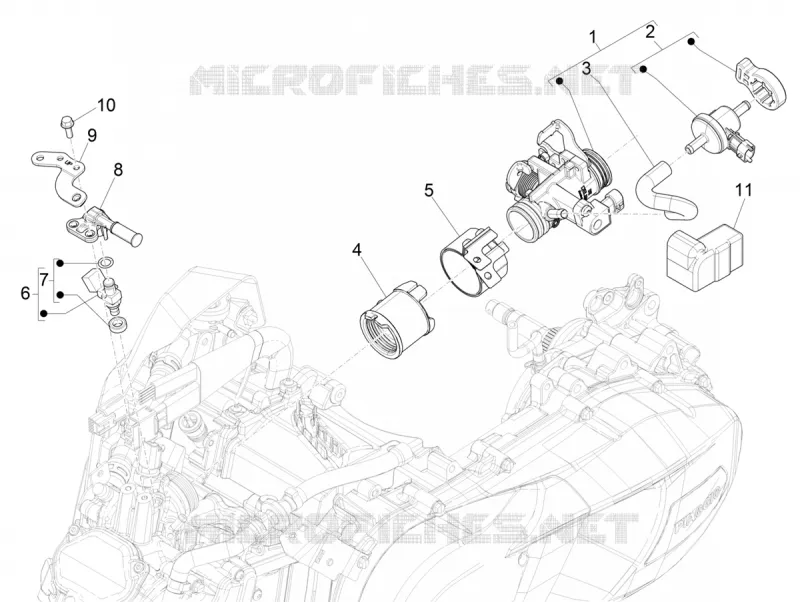

Find the detailed Throttle body - Injector - Inlet manifold GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
