Engine displacement
125
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
REAR WHEEL
6
Parts Diagram
Parts Catalog
Front shield
by
Remote control switches - Battery - Horn
REAR WHEEL
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1B
1A
1A
1A
1A
Roue arrière 14 x 2.50"
1C001722
$134,10 Unit Price incl. VAT
1A
Roue arrière 14 x 2.50"
1C003268
$135,37 Unit Price incl. VAT
1A
Roue arrière
1C002527R
$130,87 Unit Price incl. VAT
1B
Roue arrière
1C003298
$171,61 Unit Price incl. VAT
2
Moyeu roue arr.
1C000945
$25,63 Unit Price incl. VAT
3
screw M8x30
015792
$0,51 Unit Price incl. VAT
4
Spring washer
709047
$0,08 Unit Price incl. VAT
5
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
6
Tubeless tyre valve
270991
$1,85 Unit Price incl. VAT
7
Roue phonique ABS
1A004917
$6,08 Unit Price incl. VAT
8
Hex socket screw M6x20
667152
$0,26 Unit Price incl. VAT
9
Rear brake disc
667032
$70,20 Unit Price incl. VAT
9
Rear brake disc
58547R5
$70,20 Unit Price incl. VAT
10
Vis à tête bombée à six pans creux
1C002564
Not Available
10
Vis à tête bombée Torx
1C004053
$0,88 Unit Price incl. VAT
11
Bras de suspension droit complet
1A006223
$97,57 Unit Price incl. VAT
12
Gasket ring 25-47-5
1A005943
$3,65 Unit Price incl. VAT
13
Ball bearing
82545R
$12,11 Unit Price incl. VAT
14
Circlip
006647
$1,10 Unit Price incl. VAT
15
Gasket ring 25-37-6
1A005942
$3,65 Unit Price incl. VAT
16
Nut M16x13
563728
$1,42 Unit Price incl. VAT
17
Nut hold cap
194423
$0,48 Unit Price incl. VAT
18
Split pin
5A000046
$3,65 Unit Price incl. VAT
19
Vis M8x24
1A004486
$0,44 Unit Price incl. VAT
20
Spring washer
709047
$0,08 Unit Price incl. VAT
21
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
22
Pneu arrière Maxxis 110/80-14"
1C001587
$97,71 Unit Price incl. VAT
23
Spacer
1C002175
$9,41 Unit Price incl. VAT
24
Rear wheel spacer
1C002344
$18,12 Unit Price incl. VAT
25
Capteur arrière ABS
1D0013515
Not Available
26
Torx Screw
880285
$3,65 Unit Price incl. VAT
27
Flat washer
669282
$1,43 Unit Price incl. VAT
28
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
29
Rear wheel sticker
2H002095
$3,28 Unit Price incl. VAT

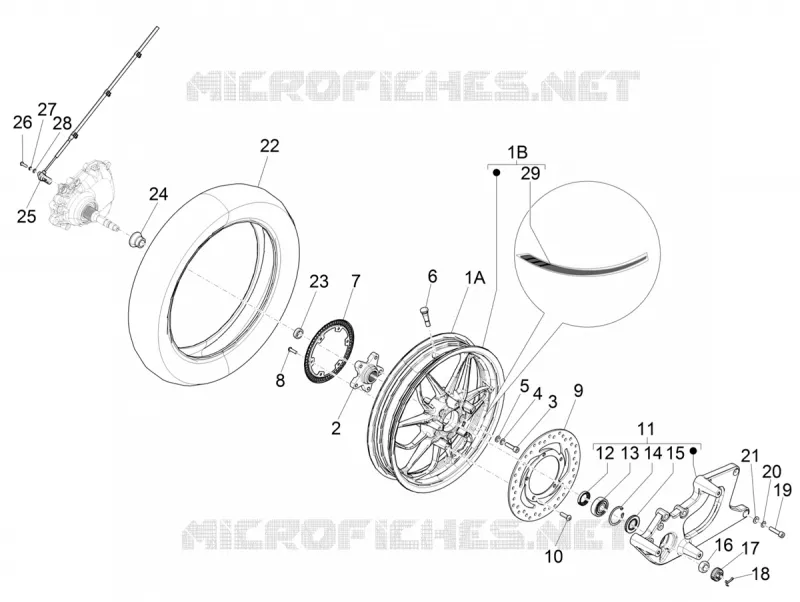

Find the detailed REAR WHEEL GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
