Engine displacement
125
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
STICKERS - LABELS
Rear suspension - Shock absorber/s
1
1
2
2
3
3
4
4
5
6
6
7
7
8
9
10
11
12
13
1
Amortisseur arrière complet
1C003218
Not Available
2
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
3
Washer
012535
$0,08 Unit Price incl. VAT
4
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
5
Support amortisseur G.
1C002251
$5,53 Unit Price incl. VAT
6
screw M10x40
030097
$3,65 Unit Price incl. VAT
7
Washer
012535
$0,08 Unit Price incl. VAT
8
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
9
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
10
Nut M8
020008
$0,08 Unit Price incl. VAT
11
Support amortisseur D.
1C000963
$4,66 Unit Price incl. VAT
12
screw
030074
$3,65 Unit Price incl. VAT
13
Spring washer
709047
$0,08 Unit Price incl. VAT

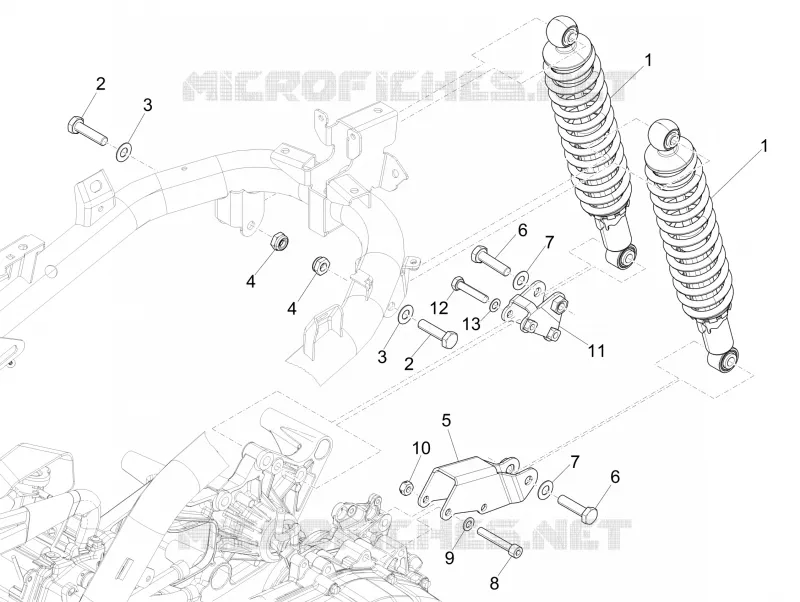

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
