1
Engine displacement
125
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Driving pulley
6
Parts Diagram
Parts Catalog
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

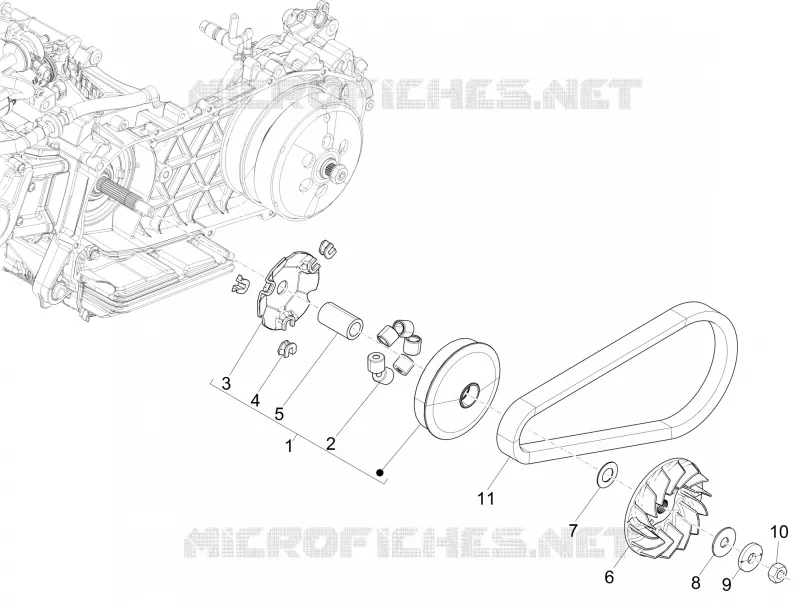

Driving pulley
1
1
1
2
2
3
4
5
6
7
7
8
9
10
11
1
Boîtier à rouleaux complète
CM257708
Not Available
1
Boîtier à rouleaux complète
CM257704
$42,11 Unit Price incl. VAT
1
Complete roller housing
CM167601
$40,66 Unit Price incl. VAT
2
roller complete
B017946
Not Available
2
roller complete
1A001380
Not Available
3
Roller contrast
485710
$12,02 Unit Price incl. VAT
4
Sliding block
B017219
$2,19 Unit Price incl. VAT
5
Spacer
483889
$19,92 Unit Price incl. VAT
6
Fixed driving half pulley
876921
$20,68 Unit Price incl. VAT
7
Flat washer
1A007071
$0,94 Unit Price incl. VAT
7
Plain washer
831363
$1,18 Unit Price incl. VAT
8
Flat washer 12.1x36x2
840533
$1,60 Unit Price incl. VAT
9
Belleville spring
880950
$2,69 Unit Price incl. VAT
10
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT
11
Courroie trapézoïdale
1A011455
$82,80 Unit Price incl. VAT

Find the detailed Driving pulley GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
