1
Engine displacement
125
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
6
Parts Diagram
Parts Catalog
Driving pulley
by
Reduction unit
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
6
7
8
9
10
10
11
12
13
14
14
15
16
16
17
18
19
1
Complete H.V. coil
1D001665
$25,08 Unit Price incl. VAT
2
Screw w/ flange
1A003001
$0,51 Unit Price incl. VAT
3
Washer
012528
$0,34 Unit Price incl. VAT
4
H.V. coil support bracket
1A005097
$3,83 Unit Price incl. VAT
5
Screw w/ flange M6x16
1A004277
$2,20 Unit Price incl. VAT
6
Wiring clip
1D001143
$0,34 Unit Price incl. VAT
7
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
8
Dispositif de commande des clignotants
1D001261
Not Available
9
Device bracket
642317
$0,50 Unit Price incl. VAT
10
Fall sensor
680212
$56,87 Unit Price incl. VAT
10
Capteur anti-basculement
1D002612
Not Available
11
Torx Screw
880285
$3,65 Unit Price incl. VAT
12
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
13
Flat washer
669282
$1,43 Unit Price incl. VAT
14
Prise USB
1D002753
Not Available
14
USB port
1D002258
Not Available
15
Fairlead
1B001591
$1,56 Unit Price incl. VAT
16
Centrale électronique
CM267110
$469,11 Unit Price incl. VAT
16
Centrale électronique
CM267103
$469,11 Unit Price incl. VAT
17
Tampon
1D001561
$1,10 Unit Price incl. VAT
18
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
19
Flat washer Ø5,3xØ14x1
097733
$3,65 Unit Price incl. VAT

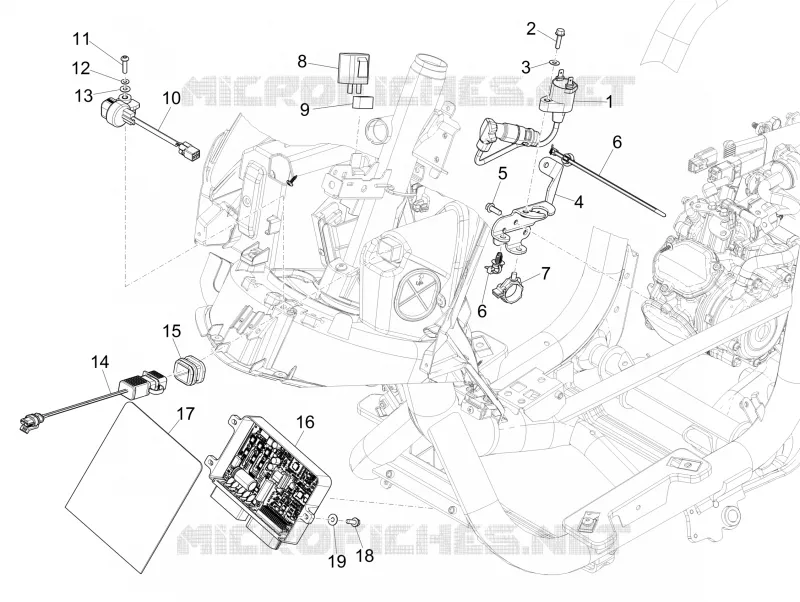

Find the detailed Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
