1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog
Rear headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Throttle body - Injector - Union pipe
Rear headlamps - Turn signal lamps
1
2
2
3
4
5
6
7
8
9
10
10
11
11
12
12
13
14
1
Taillight with reflector
1D000570
$55,57 Unit Price incl. VAT
2
12V-5W bulb
2920225
$1,10 Unit Price incl. VAT
3
Lamp 12V-16W
638536
$2,22 Unit Price incl. VAT
4
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
5
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
6
Right rear turn indicator
584972
$59,40 Unit Price incl. VAT
7
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
8
Left rear turn indicator
584973
$59,40 Unit Price incl. VAT
9
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
10
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
11
Plate
CM017406
$3,65 Unit Price incl. VAT
12
Cap
250522
$4,82 Unit Price incl. VAT
13
Light frame
1B000959
$39,97 Unit Price incl. VAT
14
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT

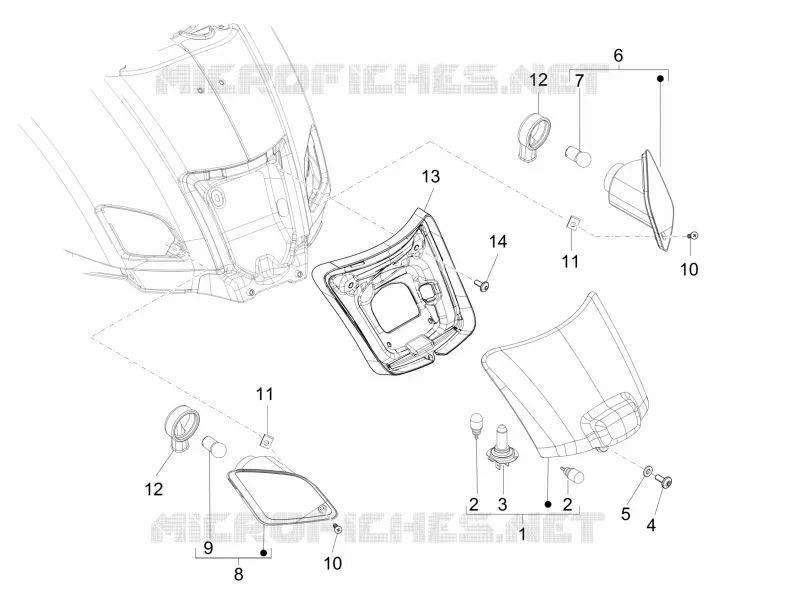

Find the detailed Rear headlamps - Turn signal lamps GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
