1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Rear cover - Splash guard
by
Engine, assembly
Fuel tank
1
2
3
4
4
5
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Fuel tank
656010
Not Available
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3
screw M6x35
414838
$0,67 Unit Price incl. VAT
4
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
5
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
6
Spacer
623162
$0,50 Unit Price incl. VAT
7
Spring plate M6
254485
$0,34 Unit Price incl. VAT
8
Fuel tank gasket
1B004806
$4,82 Unit Price incl. VAT
8
Fuel tank gasket
620737
$4,82 Unit Price incl. VAT
9
Plug
656022
$8,74 Unit Price incl. VAT
10
Tank cover gasket
656021
$8,66 Unit Price incl. VAT
11
Indicator fuel level
CM025707
$86,99 Unit Price incl. VAT
12
Fuel pump cpl.
1D001804
$355,05 Unit Price incl. VAT
13
Fuel filters
1D001657
$95,59 Unit Price incl. VAT
14
Ring nut
576546
$4,71 Unit Price incl. VAT
15
Fuel pipe complete with joints
1B004592R
$51,49 Unit Price incl. VAT
16
Hose clamp
1B001615
$3,65 Unit Price incl. VAT
17
Self locking nut
012138
$0,17 Unit Price incl. VAT
18
Hose clamp
675510
$1,80 Unit Price incl. VAT
19
Gasket
656003
$15,89 Unit Price incl. VAT

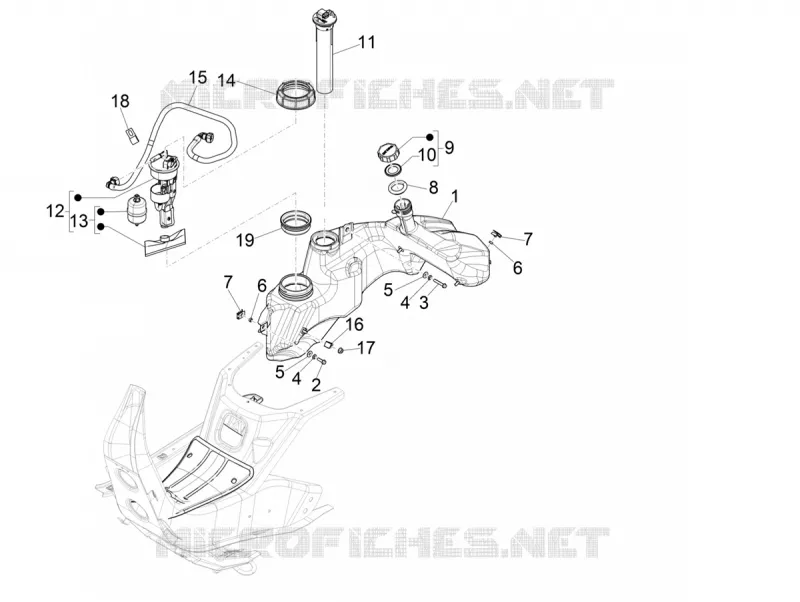

Find the detailed Fuel tank GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
