1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog
Stand/s
6
Parts Diagram
Parts Catalog
Throttle body - Injector - Union pipe
by
Selectors - Switches - Buttons
Stand/s
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
1
Centre stand with I.P.
1C002612
Not Available
1
Centre stand with U.P.
1C003384
Not Available
2
Hex screw
668187
$3,65 Unit Price incl. VAT
3
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
4
Spacer
582298
$3,27 Unit Price incl. VAT
5
O-ring
273754
$0,16 Unit Price incl. VAT
6
Internal lateral stand spring
582850
$4,89 Unit Price incl. VAT
7
Lateral stand spring
582851
$4,89 Unit Price incl. VAT
8
Pad
272426
Not Available
9
Side Stand with i.p.
1C000370
$30,28 Unit Price incl. VAT
10
Stand pin
1C000384
$7,23 Unit Price incl. VAT
11
O-ring 12,42x1
434947
$2,99 Unit Price incl. VAT
12
Gasket
191189
$0,17 Unit Price incl. VAT
13
Spring
599561
$4,82 Unit Price incl. VAT
14
Spring
295789
$4,82 Unit Price incl. VAT
15
Support bracket sensor
1C000368
$8,16 Unit Price incl. VAT
16
Side stand switch
1D0019356
$45,90 Unit Price incl. VAT
17
Guard
1C000518
$3,68 Unit Price incl. VAT
18
Washer
016343
$2,62 Unit Price incl. VAT
19
Torx Screw M5x20
B016808
$0,20 Unit Price incl. VAT
20
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
21
Hex socket screw M6x16
709099
$0,16 Unit Price incl. VAT
22
Pad
967351
$7,23 Unit Price incl. VAT

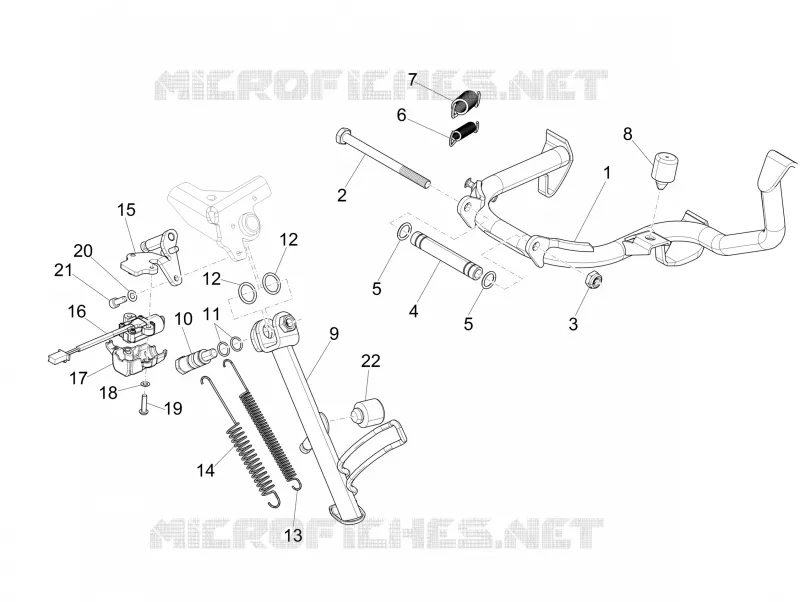

Find the detailed Stand/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
