1
Water cooler
577183
$50,73 Unit Price incl. VAT
2
Self tapping screw 4,2x16
CM178606
$0,16 Unit Price incl. VAT
3
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
4
Fan engine
584669
$76,39 Unit Price incl. VAT
5
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Left air duct
577187
$15,22 Unit Price incl. VAT
8
Right air duct
622839
$15,22 Unit Price incl. VAT
9
Coolant tank
657110
Not Available
10
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
11
screw
257404
$2,95 Unit Price incl. VAT
12
Spring plate M6
254485
$0,34 Unit Price incl. VAT
13
Hose clamp
CM001903
$0,84 Unit Price incl. VAT
14
pipe
577433
$5,38 Unit Price incl. VAT
15
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
16
Joint
577195
$8,16 Unit Price incl. VAT
17
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
18
Spring washer
709047
$0,08 Unit Price incl. VAT
19
Spring plate M6
254485
$0,34 Unit Price incl. VAT
20
Hose clamp
CM001915
$1,03 Unit Price incl. VAT
21
Upper joint pipe
624703
$35,51 Unit Price incl. VAT
21
Upper connection joint pipe
57333R
$56,11 Unit Price incl. VAT
22
Thermal switch joint
949625
$5,38 Unit Price incl. VAT
23
Fitting support bracket
624702
$6,30 Unit Price incl. VAT
24
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
25
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
26
Nut M6
020106
$0,08 Unit Price incl. VAT
27
Head coupling tube
653501
$31,97 Unit Price incl. VAT
28
Hose clamp
CM001922
$3,65 Unit Price incl. VAT
29
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
30
Thermal switch
640017
$17,83 Unit Price incl. VAT
31
Hose clamp
CM001907
$0,84 Unit Price incl. VAT
32
pipe
577384
$8,91 Unit Price incl. VAT
34
Hose clamp
CM001905
$1,38 Unit Price incl. VAT
35
Lower joint-right radiator connection pipe
577201
$26,74 Unit Price incl. VAT
37
pipe
57314R
$7,23 Unit Price incl. VAT
38
Joint for water pipes
656449
$17,83 Unit Price incl. VAT
39
Lower joint pipe
656437
$20,60 Unit Price incl. VAT
40
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT

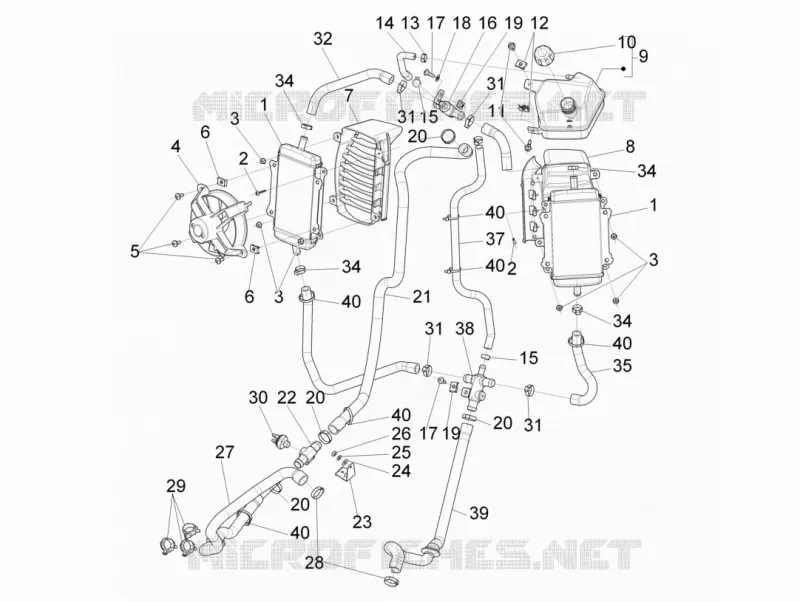

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
