1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog
Front headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by

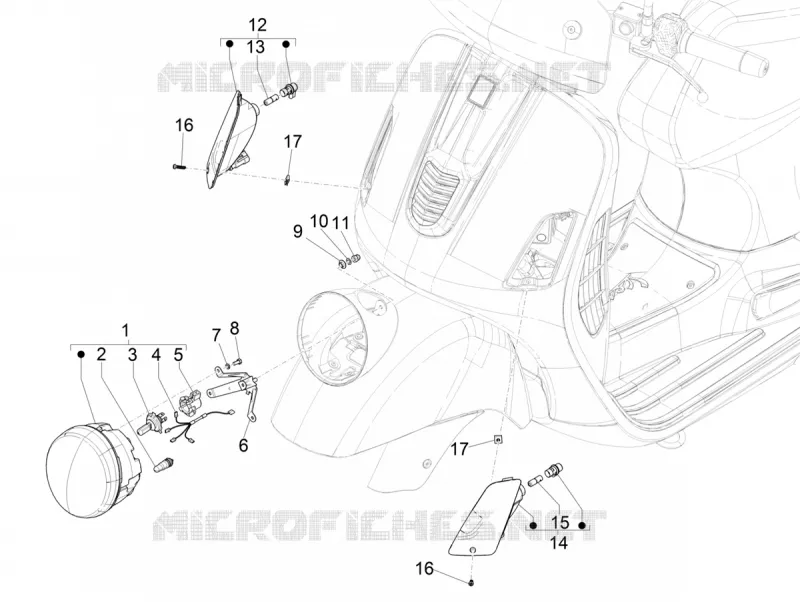

Front headlamps - Turn signal lamps
1
2
3
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
16
17
17
1
Reflector, assy.
639846
$141,75 Unit Price incl. VAT
2
12V-5W bulb
2920225
$1,10 Unit Price incl. VAT
3
Halogen Lamp H4 12V-60/55W
640280
$25,38 Unit Price incl. VAT
3
Lamp 12V-35/35W
219528
$13,37 Unit Price incl. VAT
4
Headlamp cable harness
638563
$26,13 Unit Price incl. VAT
5
Lampholder
253327
$4,82 Unit Price incl. VAT
6
Headlight support bracket
648297
$20,60 Unit Price incl. VAT
7
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
8
screw M5x12
031056
$0,09 Unit Price incl. VAT
9
Knurled bushing
830056
$0,34 Unit Price incl. VAT
10
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
11
Nut
648349
$3,65 Unit Price incl. VAT
12
RH front turn indicator
638715
$36,45 Unit Price incl. VAT
13
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
14
LH front turn indicator
638716
$36,45 Unit Price incl. VAT
15
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
16
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
17
Plate
CM017406
$3,65 Unit Price incl. VAT

Find the detailed Front headlamps - Turn signal lamps GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
