1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog

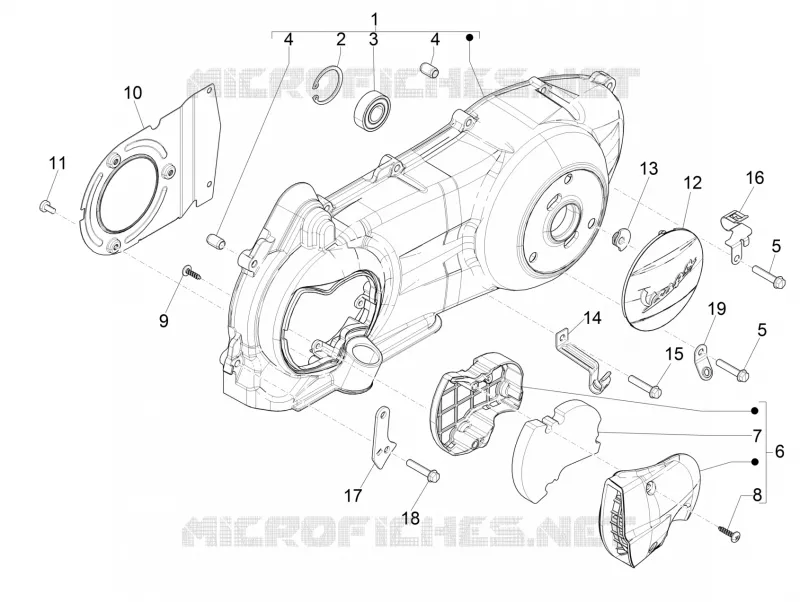

Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Cylinder head cover
Crankcase cover - Crankcase cooling
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Transmission cover with U.P.
8714725
$258,52 Unit Price incl. VAT
2
Snap ring
006635
$0,25 Unit Price incl. VAT
3
Radial bearing 15x35x11
4789853
$6,05 Unit Price incl. VAT
4
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
5
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
6
Cooling Cover
842090
$5,06 Unit Price incl. VAT
7
Filtering element
842093
$0,92 Unit Price incl. VAT
8
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
9
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
10
Air deflector
834266
$4,30 Unit Price incl. VAT
11
Self-tapping screw
430264
$2,99 Unit Price incl. VAT
12
"""Vespa"" transmission small cover"
CM155107
$19,68 Unit Price incl. VAT
13
Retainer buffer
871458
$1,09 Unit Price incl. VAT
14
Hose clamp
1C001520
$1,09 Unit Price incl. VAT
15
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
16
Hose clamp
1C002845
$6,60 Unit Price incl. VAT
17
Plate
872493
$3,65 Unit Price incl. VAT
18
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
19
Hose clamp
844964
$0,25 Unit Price incl. VAT

Find the detailed Crankcase cover - Crankcase cooling GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
