1
Engine displacement
300
2
Model
BEVERLY
3
Year
2015
4
Trim
BEVERLY RST/S 4T 4V IE E3
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Rear wheel
by
Driven pulley
Crankcase
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
1
Complete crankcase Cat.2
B0172830002
Not Available
1
Complete crankcase Cat.1
8787015001
Not Available
1
Complete crankcase Cat.2
8787015002
Not Available
1
Complete crankcase Cat.1
B0172830001
Not Available
2
Stud bolt
1A003628R
$10,95 Unit Price incl. VAT
3
Plug M12x1,5
411311
$0,67 Unit Price incl. VAT
4
Pin 6,5x9,5x15
239388
Not Available
5
Radial ball bearing 15x42x13
83018R
$4,46 Unit Price incl. VAT
6
Locating dowel Ø11x10
478115
$0,24 Unit Price incl. VAT
7
Circlip 25x26.9x1.2
000674
Not Available
8
Radial ball bearing 20x47x14
833701
Not Available
9
Gasket ring 20-32-7
82878R
$10,25 Unit Price incl. VAT
10
Pin 6,5x9,5x15
239388
Not Available
11
Nozzle
484034
$6,44 Unit Price incl. VAT
12
Nozzle D 1.1
844582
$0,05 Unit Price incl. VAT
13
Silent-block
486081
$6,73 Unit Price incl. VAT
14
Springs fixing pin
483785
$5,45 Unit Price incl. VAT
15
Gasket
875111
$3,34 Unit Price incl. VAT
16
Screw M5x10
018575
$2,95 Unit Price incl. VAT
17
Oil pressure valve
829661
$6,44 Unit Price incl. VAT
18
Spring
485655
$1,26 Unit Price incl. VAT
19
Lower oil bulkhead
483767
$0,38 Unit Price incl. VAT
20
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
21
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
22
Complete oil level dipstick
832130
$2,94 Unit Price incl. VAT
23
Gasket ring 14,43x9,19x2,62
827085
$2,99 Unit Price incl. VAT
24
Upper oil bulkhead
485047
$0,48 Unit Price incl. VAT
25
Filter door insert
845861
$3,82 Unit Price incl. VAT
26
Gasket
431065
$0,42 Unit Price incl. VAT
27
Screw w/ flange M6x60
B016425
$1,01 Unit Price incl. VAT

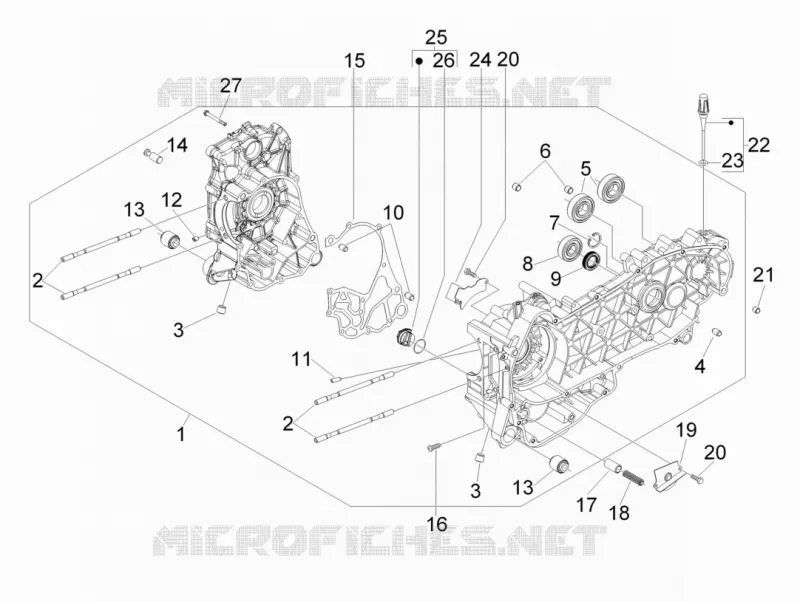

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
